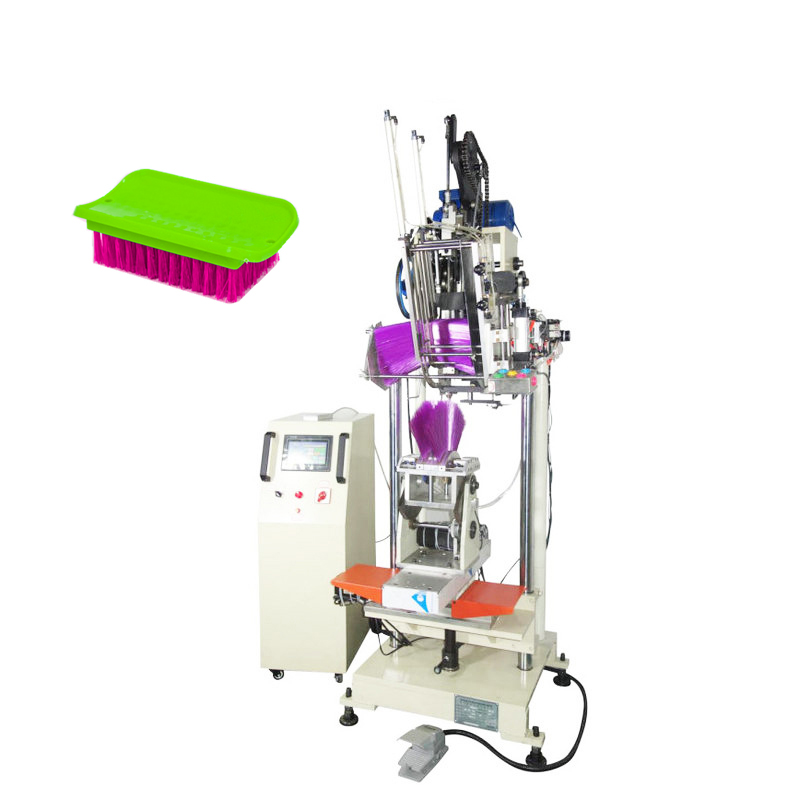

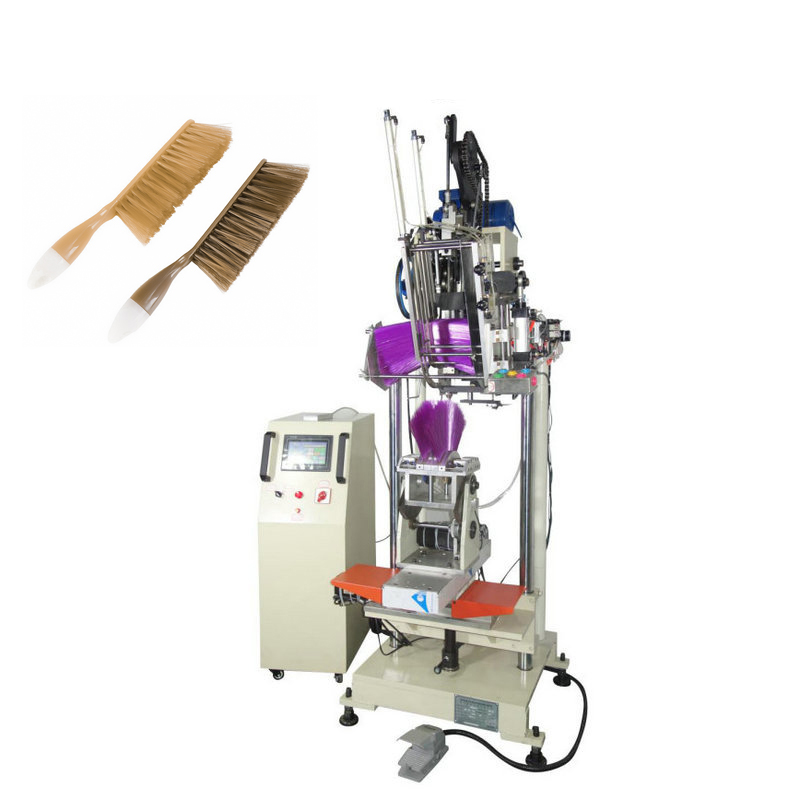

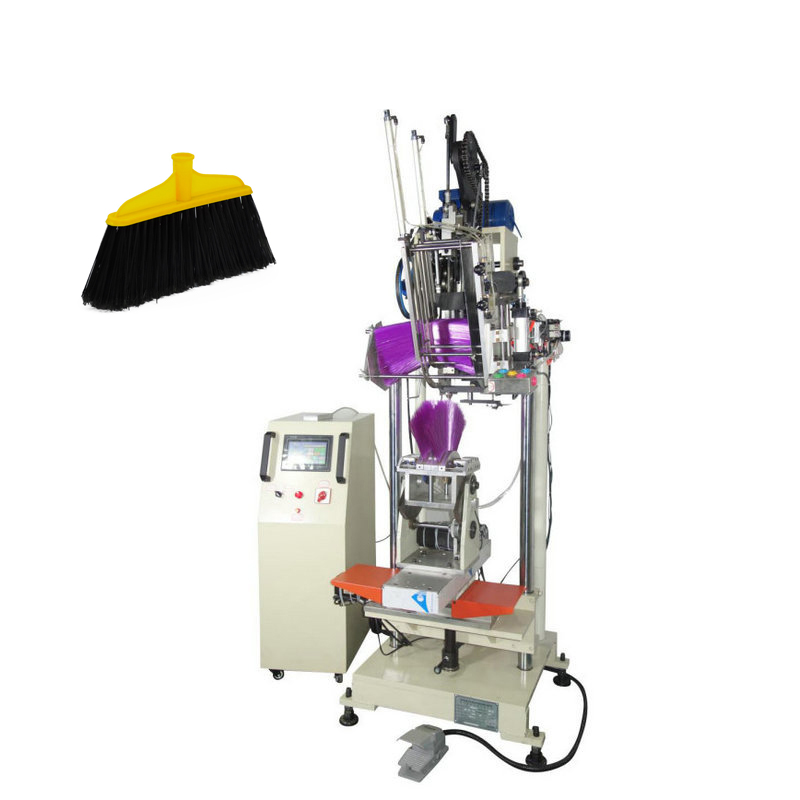

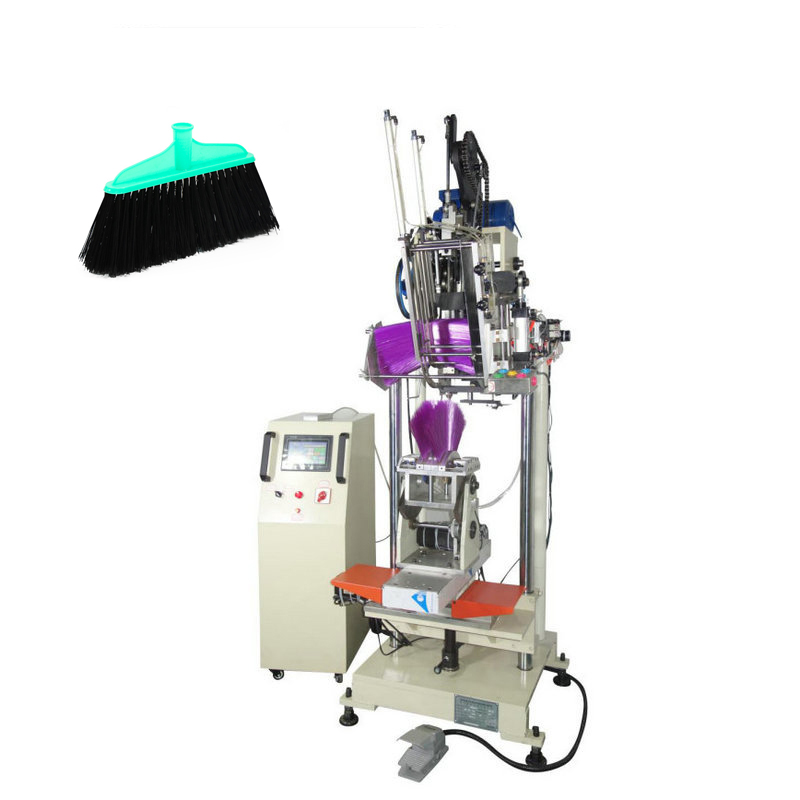

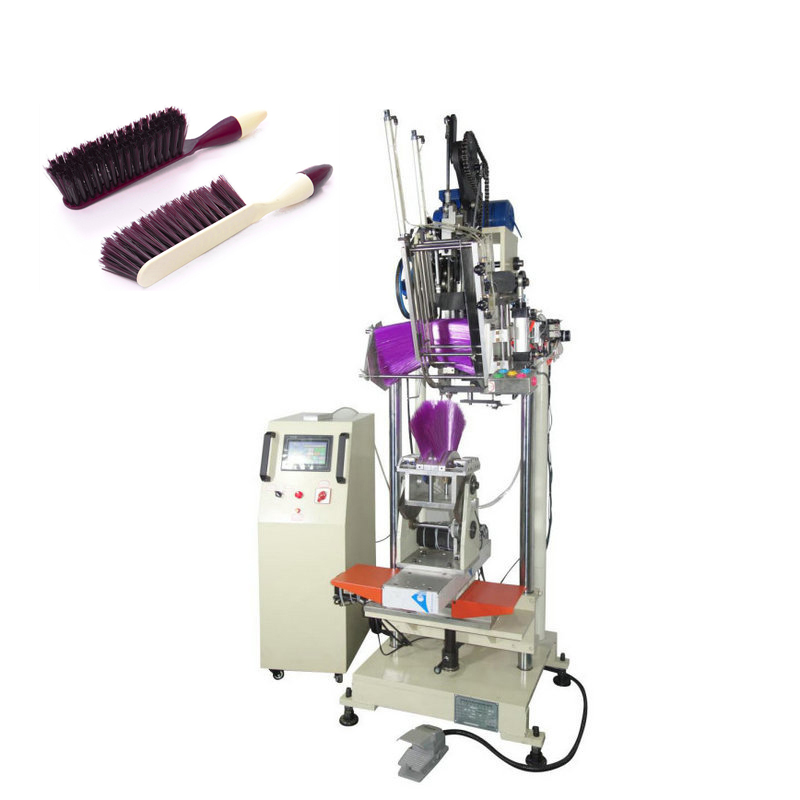

3 Axis Single Head High Speed Tufting Machine

1.Suitable for pre-hole brushes in regular curvedshape, round shape and flat shape, such assingle hockey brush, ceiling brush,  smallcylinder brush,stenter brush, broom,scrubbrush, and so on.

2.Adopt high-speed machine head system. Speedreaches 7 holes per second.

3.Equipped with a worktable 2 stations, machineworks in continuous cycle, high efficiency.

4.Single color and double colors are optional.

5.Single or double color hair transplantation can be chosen at will.

6.Touch screen control system, Chinese andEnglish versions flexible and convenientoperation.

7.With insert, division array, offset, modify and other functions, easy to program.

8.Can save 128 different brushes programs,support external USB.

9.Tufting accessories are standardized designs,durable, and easy to repair and replace.

10.Machine got CE approved.

اتصل بنا







——   PRODUCT SIZE   ——

Brush Making Machine Performance and Features



Model ZS-130BX3-SF3A ZS-180BX3-SF3AL
Axes 3 3
Fixture 2 2
Tufting Type  Flat wire / Stapling wire
Speed (r/min) 450 420
Length of fiber outside hole (mm) 17~130 17~180
Total length of fiber (mm) 40~270 40~400
Diameter of hole (mm) 2.0-5.0/2.8-6.5
Diameter of fiber (mm) 0.07~1.5mm
Color Double colors
Total power(KW) 2.8 2.8
Voltage (V) 380V /220V 380V/220V
Air consumption (mpa.) 0.4-0.6 0.4-0.6
Dimensions (L xW xH cm)

120 x 91 x 180

41 x 35x 104

120x91 x196

41 x 35x 104

Net weight (kgs) 450 450





——   EQUIPMENT DETAILS   ——

Detailed display of the brush making machine
