Brush Making Machine

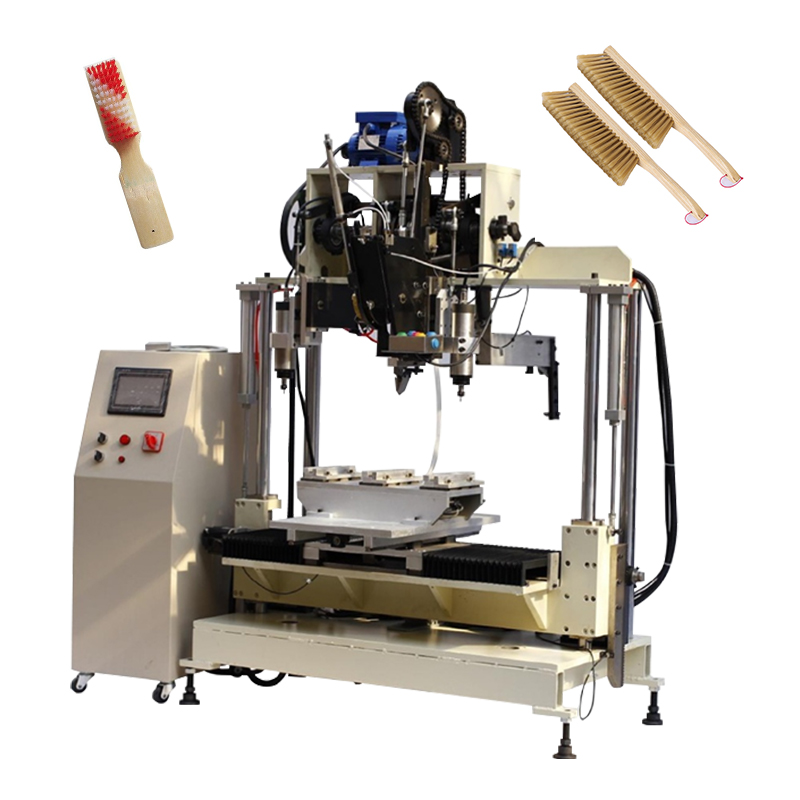

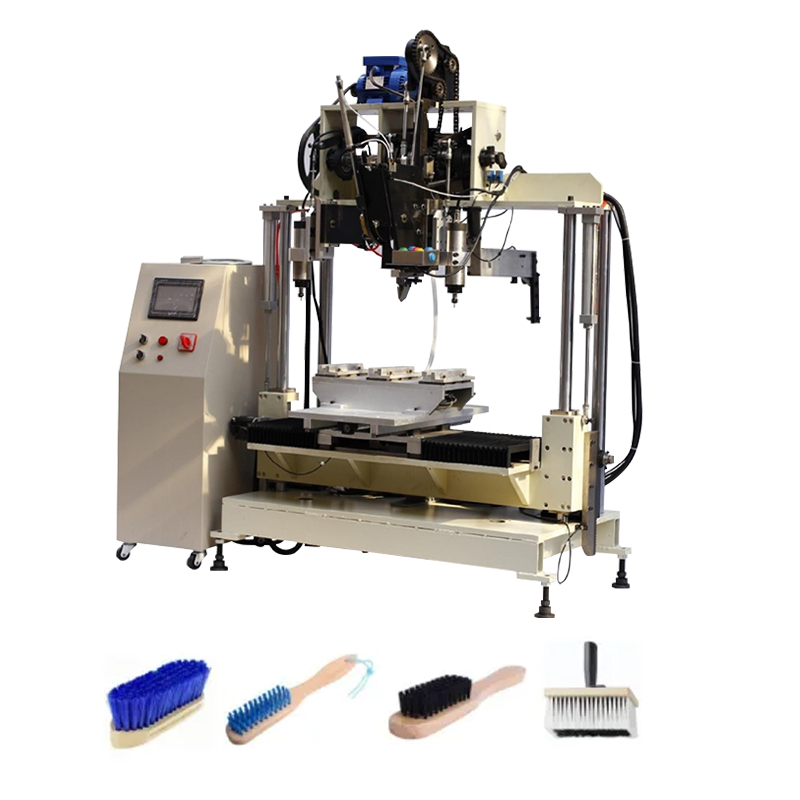

2 Axis 3 Head Drilling and Filling Machine

1.Designed by 2 drillings and 1 tufting, equippedwith 3 stations 3 fixtures, machine works incontinuous cycle, high efficiency.

2.Suitable for brushes in flat shape, such as scrubbrush, bath brush, block brush and so on.

3.Adopt high-speed machine head system. Speedreaches 450r/m.

4.Single color and double colors are optional.

5.Support synchronous drilling and tufting, single drilling, single tufting and other processing modes.

6.With insert, division, array, offset modify and other functions, easy to program.

7.Can save 128 different brushes programs, supportexternal USB.

8.Tufting accessories are standardized designs,achieve multi-process finishing, beautiful anddurable.

9.Machine got CE approved.

Contact Us







——   PRODUCT SIZE   ——

Brush Making Machine Performance and Features



Model ZS-130MD2-SF2A3H ZS-180MD2-SF2A3HL
Axes 2 2
Fixture 3 3
Tufting Type Stapling wire
Speed (r/min) 450 420
Length of fiber outside hole (mm) 17~130 17~180
Total length of fiber (mm) 40~270 40~400
Diameter of hole (mm) 2.8~6.5 2.8~8.0
Diameter of fiber (mm) 0.07~1.5mm
Color  Double colors
Total power(KW) 5 5
Voltage (V) 380V /220V 380V/220V
Air consumption (mpa.) 0.4-0.6 0.4-0.6
Dimensions (L xW xH cm)

155 x 125 x 186

41 x 35x 104

155 x 125 x196

41 x 35x 104

Net weight (kgs) 1000 1000







——   EQUIPMENT DETAILS   ——

Detailed display of the brush making machine
