Brush Making Machine

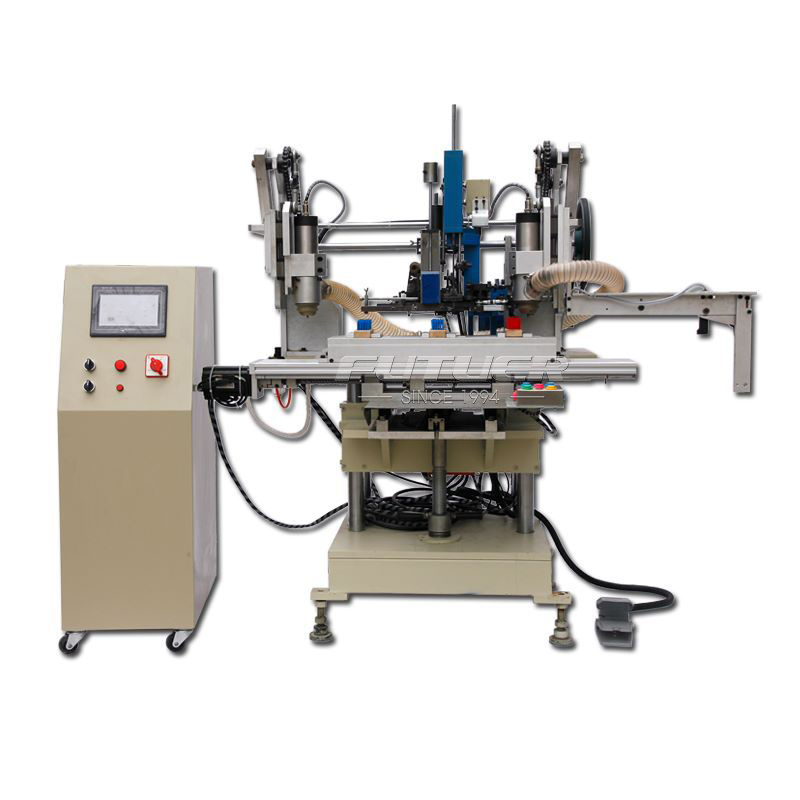

2 Axis 3 Head Drilling And Tufting Machine

1.Special for pre-hole brushes in flat shape. Suchas wire brush,bristle brush,shoes brush, bathbrush and other small brushes.

2.This tufting system is especially suitable for brushes with small hole diameter and short fiber length, as well as brushes with fiber of stainless steel wire, copper wire,pig bristle, wool, horsehair, Tampico fiber and other animal hair andnatural fiber.

3.Equipped with a worktable 2 stations,machineworks in continuous cycle, high efficiency. Speedreaches 5-6 holes per second.

4.Single color and double colors are optional.

5.Touch screen control system, Chinese and English versions, flexible and convenient operation.

6.With insert division, array, offset, modify and other functions, easy to program.

7.Can save 128 different brushes programs,support external USB.

8.Machine got CE approved.

Contact Us







——   PRODUCT SIZE   ——

Brush Making Machine Performance and Features



Model ZS-35MD2-LS2A3H
Axes 2
Fixture 3
Tufting Type Stapling wire
Speed (r/min) 360
Length of fiber outside hole (mm) 12~35
Total length of fiber (mm) 30~80
Diameter of hole (mm) 2.2~5.0
Diameter of fiber (mm) 0.07~1.2mm
Color 单色 Single color / 双色 Double colors
Total power(KW) 5
Voltage (V) 380V/220V
Air consumption (mpa.) 0.4-0.6
Dimensions (L xW xH cm)

125 x 90 x 160

41x35x104

Net weight (kgs) 450





——   EQUIPMENT DETAILS   ——

Detailed display of the brush making machine
