Brush Making Machine

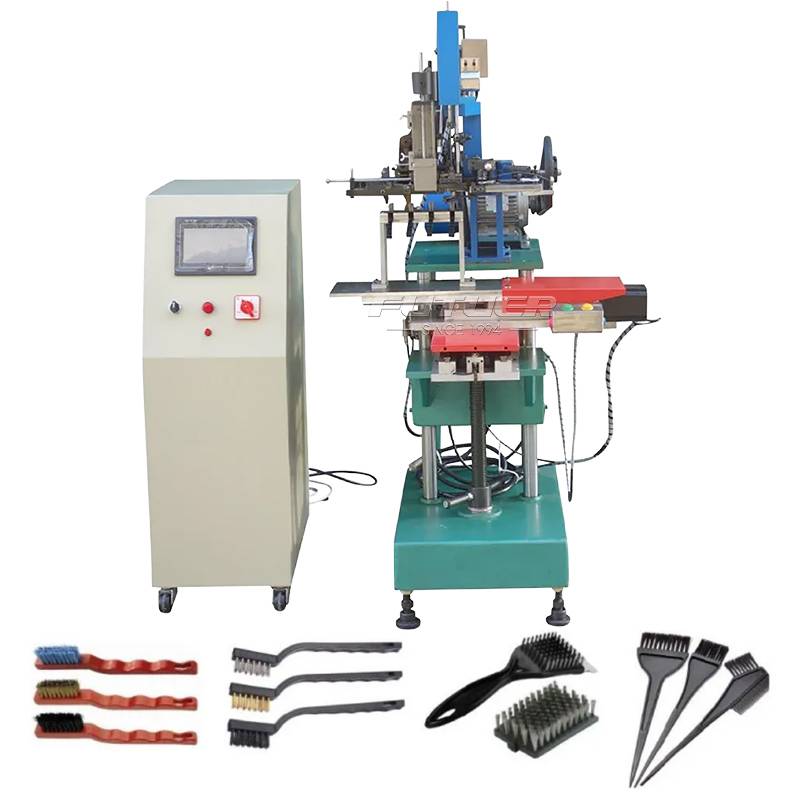

2 Axis Single Head Tufting Machine

1.Special for pre-hole brushes in flat and curved shape. Such as wire brush, hair brush,blockbrush, bristle brush, and other small brushes.

2.This tufting system is especially suitable forbrushes with small hole diameter and short fiberength, as well as brushes with fiber of stainless steel wire, copper wire, pig bristle, wool, horsehair, Tampico fiber and other animal hair and natural fiber.

3.Equipped with a worktable 2 stations, machine works in continuous cycle, high efficiency. Speed reaches 5-6 holes per second.

4.Single color and double colors are optional.

5.Touch screen control system, Chinese and English versions, flexible and convenient operation.

6.With insert, division, array, offset, modify andother functions, easy to program.

7.Can save 128 different brushes programs,support external USB.

8.Machine got CE approved.

Contact Us







——   PRODUCT SIZE   ——

Brush Making Machine Performance and Features



Model A1230-LS2A1TR
Axes 2
Fixture 2/4
Tufting Type Stapling wire
Speed (r/min) 360
Length of fiber outside hole (mm) 12~35
Total length of fiber (mm) 30~80
Diameter of hole (mm) 2.2~5.0
Diameter of fiber (mm) 0.07~1.2mm
Color Single color / Double colors
Total power(KW) 2
Voltage (V) 380V/220V
Air consumption (mpa.) 0.4-0.6
Dimensions (L xW xH cm)

85 x90 x160

41 x 35x104

Net weight (kgs) 350





——   EQUIPMENT DETAILS   ——

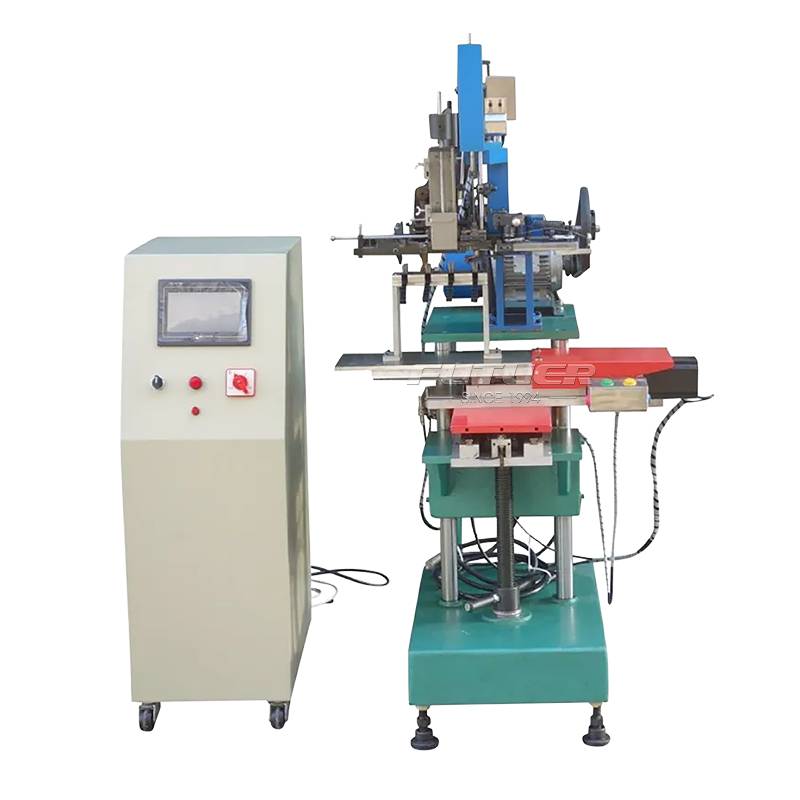

Detailed display of the brush making machine
