Brush Making Machine

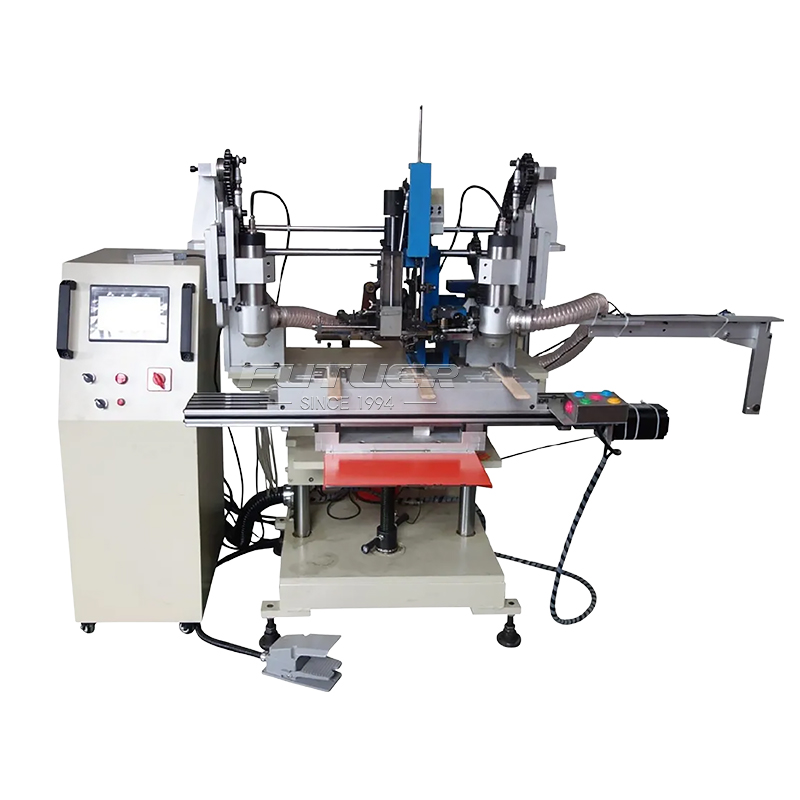

3 Axis 3 Head Drilling and Tufting Machine

1.Special for pre-hole brushes in flat and curved shape. Such as wire brush, hair brush,block brush, bristle brush, and other small brushes.

2.This tufting system is especially suitable forbrushes with small hole diameter and short fiberength, as well as brushes with fiber of stainlesssteel wire, copper wire, pig bristle, wool, horsehair, Tampico fiber and other animal hair andnatural fiber.

3.Equipped with a worktable 2 stations, machineworks in continuous cycle, high efficiency. Speedreaches 5-6 holes per second.

4.Single color and double colors are optional.

5.Touch screen control system, Chinese andEnglish versions, flexible and convenient operation.

6.With insert, division, array, offset, modify andother functions, easy to program.

7.Can save 128 different brushes programs,support external USB.

8.Machine got CE approved.

Contact Us







——   PRODUCT SIZE   ——

Brush Making Machine Performance and Features



Model ZS-35MD3-LS3A3H
Axes 3
Fixture 3
Tufting Type Stapling wire
Speed (r/min) 360
Length of fiber outside hole (mm) 12~35
Total length of fiber (mm) 30~80
Diameter of hole (mm) 2.2~5.0
Diameter of fiber (mm) 0.07~1.2mm
Color Single color/Double colors
Total power(KW) 5.8
Voltage (V) 380V/220V
Air consumption (mpa.) 0.4-0.6
Dimensions (L xW xH cm) 125 x 90 x 160
41 x 35 x 104
Net weight (kgs) 450



——   EQUIPMENT DETAILS   ——

Detailed display of the brush making machine
