Brush Making Machine

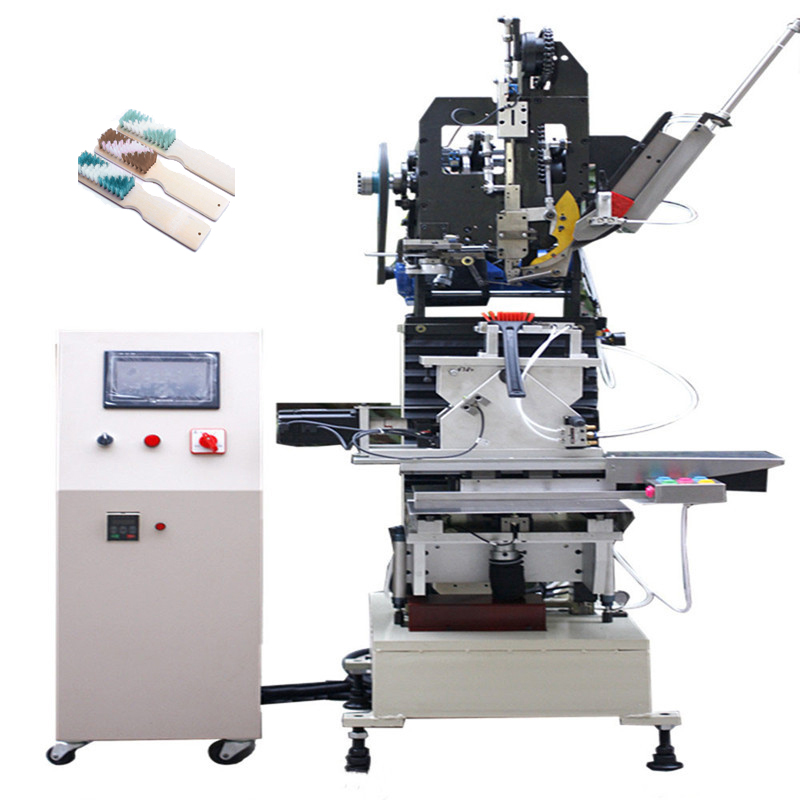

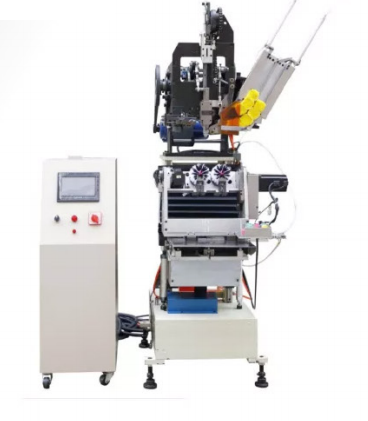

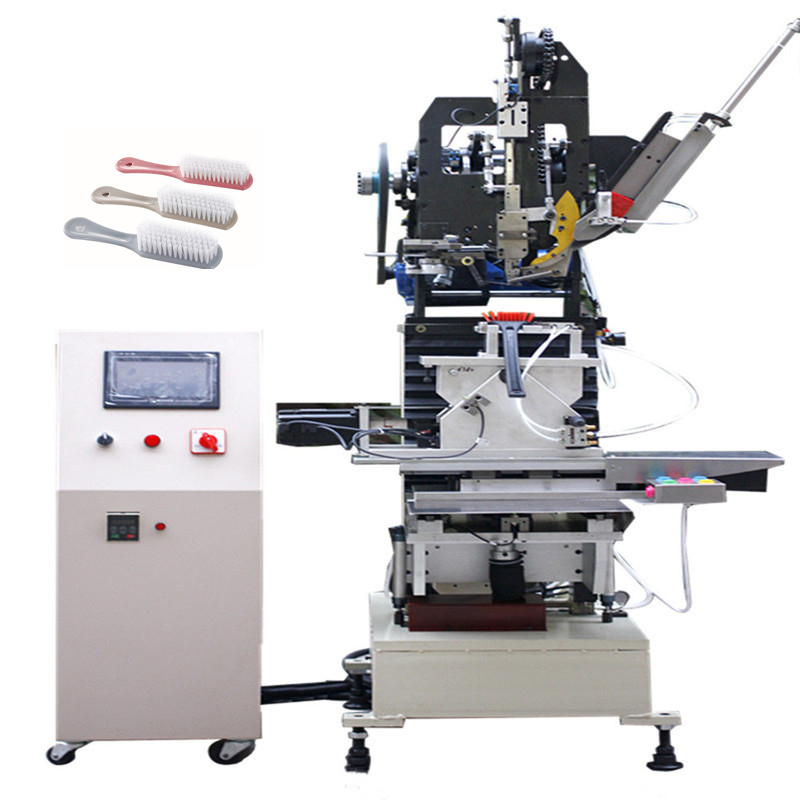

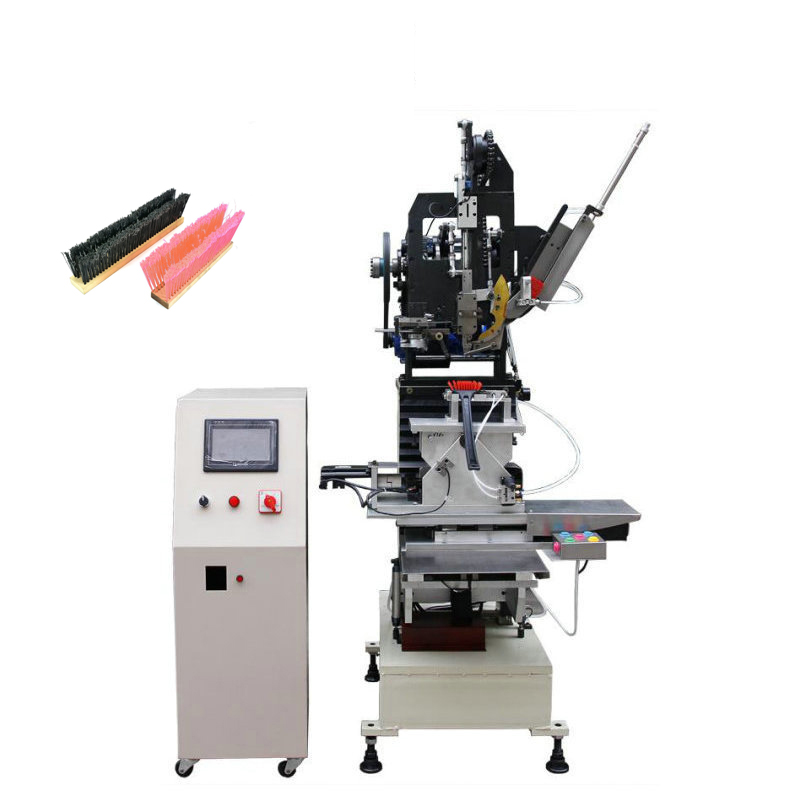

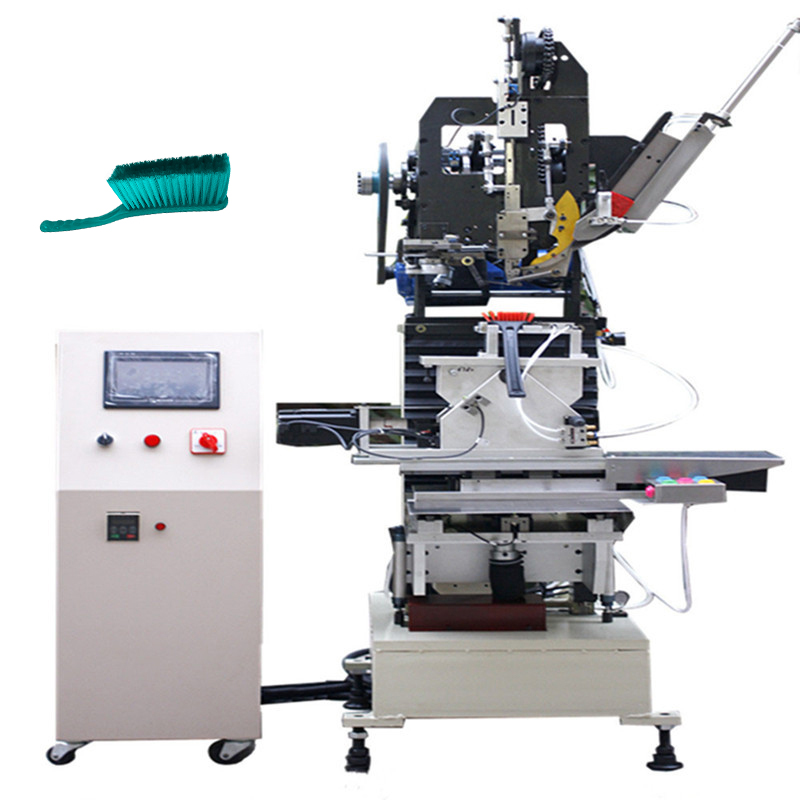

4 Axis Single Head High Speed Tufting Machine

1.Can be replaced by different platforms and fixtures to produce a variety of flat and curved brushes, such as broom, scrubbing brush, toilet brush, dust brush, ceiling brush and so on.

2.Adopt high-speed machine head system. Speedreaches 7 holes per second.

3.Equipped with a worktable 2 stations, machineworks in continuous cycle, high efficiency.

4.Single color and double colors are optional.

5.Touch screen control system, Chinese andEnglish versions, flexible andconvenientoperation.

6.With insert, division, array, offset, modify and other functions, easy to program.

7.Can save 128 different brushes programs, support external USB.

8.Tufting accessories are standardized designsdurable, and easy to repair and replace.

9.Machine got CE approved.

Contact Us







——   PRODUCT SIZE   ——

Brush Making Machine Performance and Features



Model ZS-130BX4-SF4A ZS-180BX4-SF4AL
Axes 4 4
Fixture 2 2
Tufting Type Flat wire / Stapling wire
Speed (r/min) 450 420
Length of fiber outside hole (mm) 17~130 17~180
Total length of fiber (mm) 40~270 40~400
Diameter of hole (mm) 2.0-5.0/2.8-6.5
Diameter of fiber (mm) 0.07~1.5mm
Color Double colors
Total power(KW) 3.5 3.5
Voltage (V) 380V /220V 380V/220V
Air consumption (mpa.) 0.4-0.6 0.4-0.6
Dimensions (L xW xH cm)

120 x 91 x 191

41 x 35x 104

120 x 91 x200

41 x 35x 104

Net weight (kgs) 500 500







——   EQUIPMENT DETAILS   ——

Detailed display of the brush making machine
