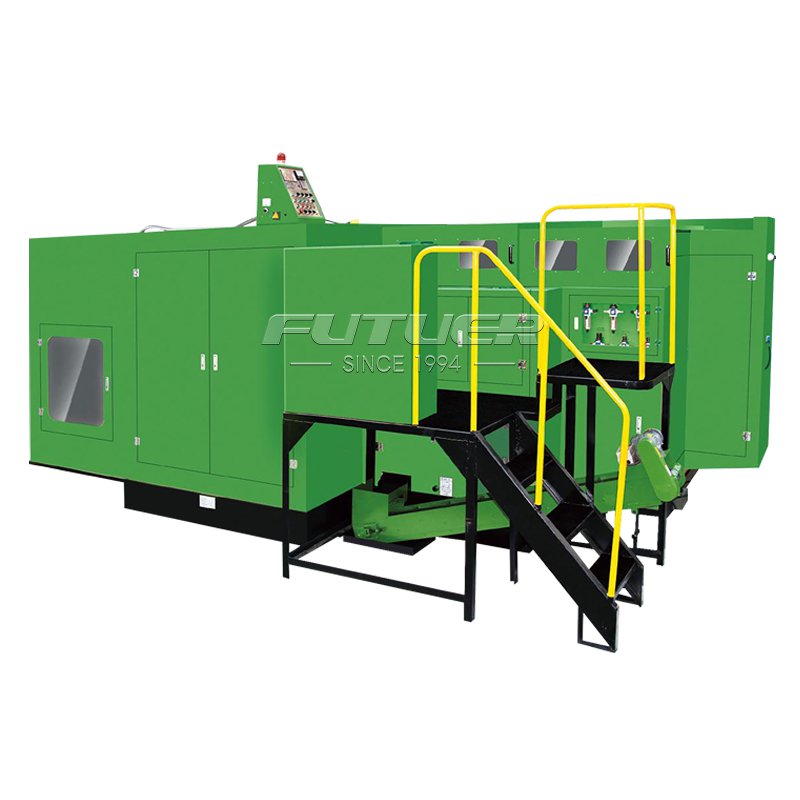

1. The whole machine has a compact structure and stable performance.
2. Forced lubrication, reasonable arrangement of oil circuits and oil tanks, more sufficient lubrication, which is beneficial to extending the life of the equipment.
3. Motors, bearings, oil pumps, etc. are made of famous brand products, which improves the reliability of the equipment.
| Model | Stations Quantiity /No |
Forming Force (kgs) |
Max.Cut -off Diameter (mm) |
Max (mm) |
Capacity/pcs (min) |
P.K.0 (mm) |
K.O (mm) |
Stroke (mm) |
(mm) |
Punch Die Diameter (mm) |
Main Die (mm) |
Die Pitch (mm) |
Normal Size of Bolt (mm) |
Shank Length of Blank/mm | Main Motor Power (kw) |
Volume (L*W*H) |
Weight (kg) |
| YH5-4S | 4 | 15000 | 7.0 | 65 | 90-120 | 10 | 70 | 90 | φ20×30L | φ31×75L | φ46×95L | 48 | 2-6 | 10-50 | 6级-11kw | 2.6×1.70×1.3 | 3800 |
