Brush Making Machine

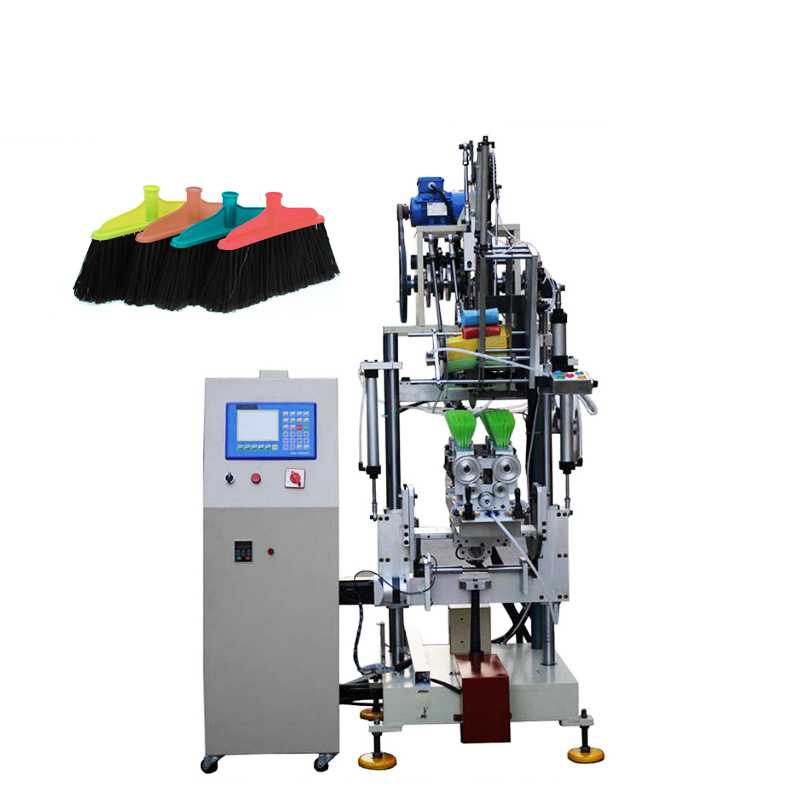

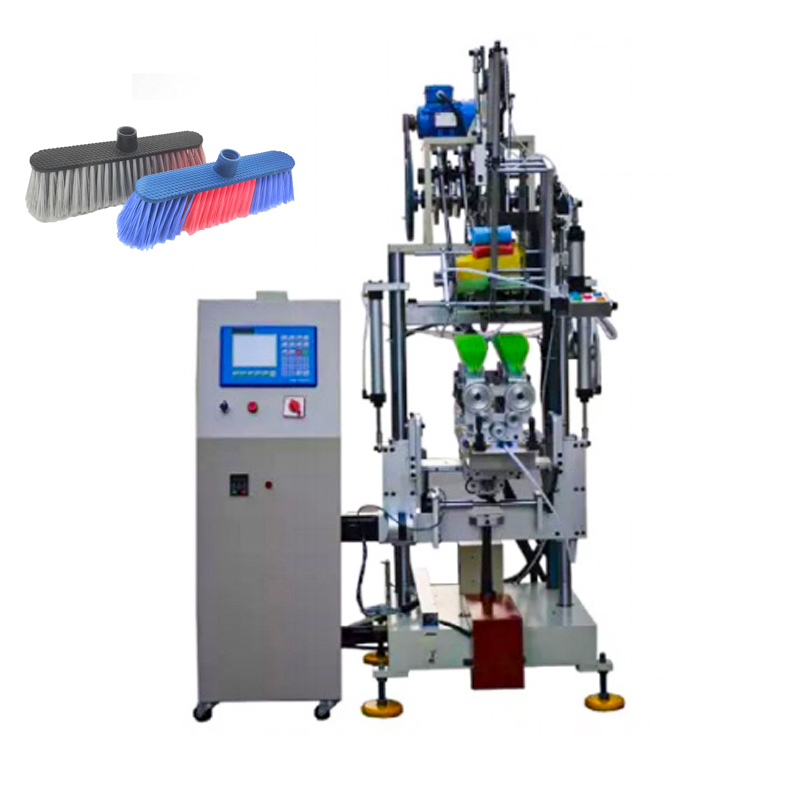

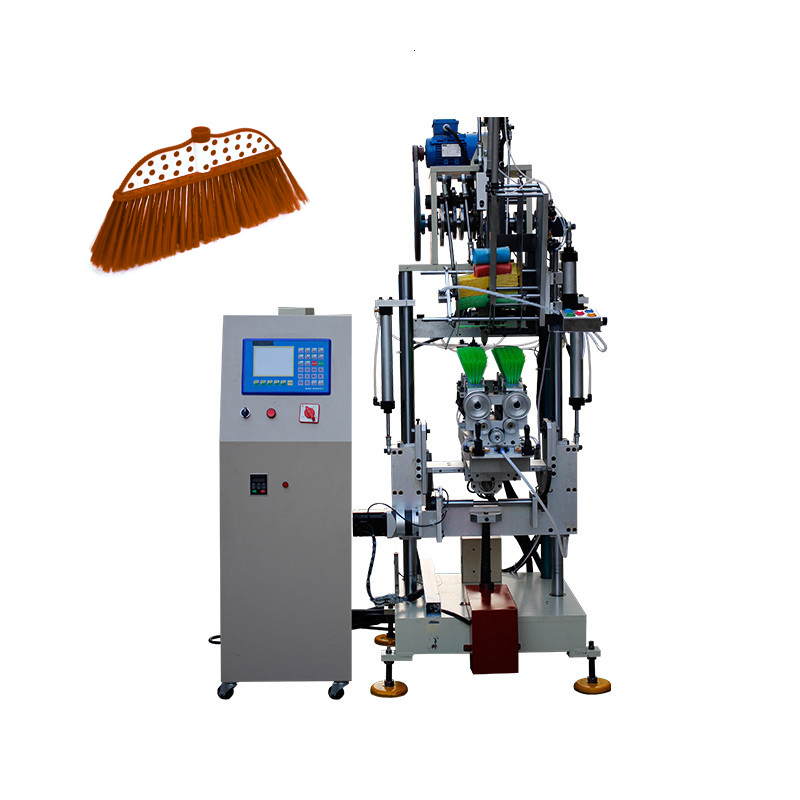

5 Axis Single Head High Speed Tufting Machine

1.Can be replaced by different platforms andfixtures to produce a variety of pre-holeregular-shape and irregular-shape brushes, suchas broom,toilet brush, double hockey brushetc.

2.Adopt high-speed machine head system. Speed reaches 7 holes per second.

3.Equipped with a worktable 2 stations,machine works in continuous cycle, high efficiency.

4.Single color and double colors are optional.

5.Chinese and English versions, flexible andconvenient operation.

6.With insert, division, offset, modify and otherfunctions,easy to program.

7.Can save more than 100 different brushesprograms, support external USB.

8.Tufting accessories are standardized designsdurable, and easy to repair and replace.

9.Machine got CE approved.

Contact Us







——   PRODUCT SIZE   ——

Brush Making Machine Performance and Features



Model ZS-130-SF5A ZS-180-SF5AL
Axes 5 5
Fixture 2 2
Tufting Type Flat wire / Stapling wire
Speed (r/min) 450 420
Length of fiber outside hole (mm) 17~130 17~180
Total length of fiber (mm) 40~270 40~400
Diameter of hole (mm) 2.0-5.0/2.8-6.5
Diameter of fiber (mm) 0.07~1.5mm
Color Double colors
Total power(KW) 4.3 4.3
Voltage (V) 380V /220V 380V/220V
Air consumption (mpa.) 0.4-0.6 0.4-0.6
Dimensions (L xW xH cm)

120 x 108 x 180

41 x 41x 122

120x 108 x196

41 x 41x 122

Net weight (kgs) 550 550





——   EQUIPMENT DETAILS   ——

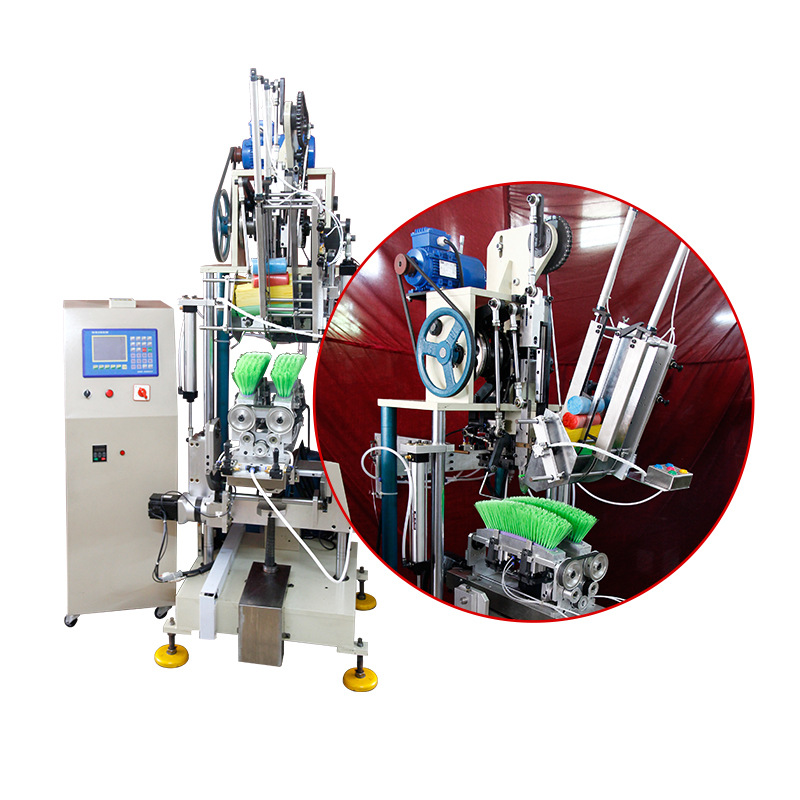

Detailed display of the brush making machine
