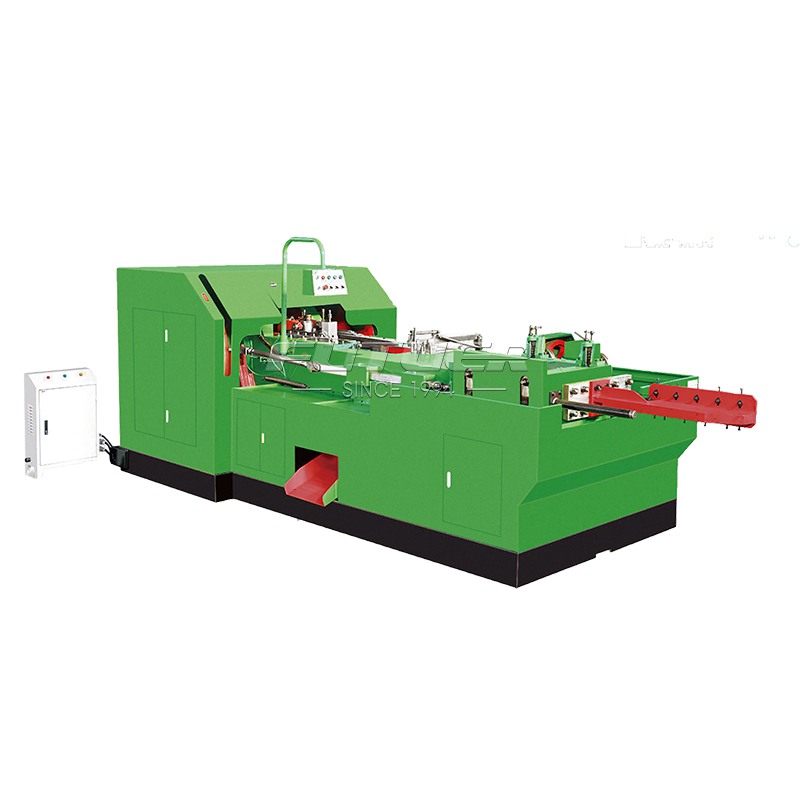

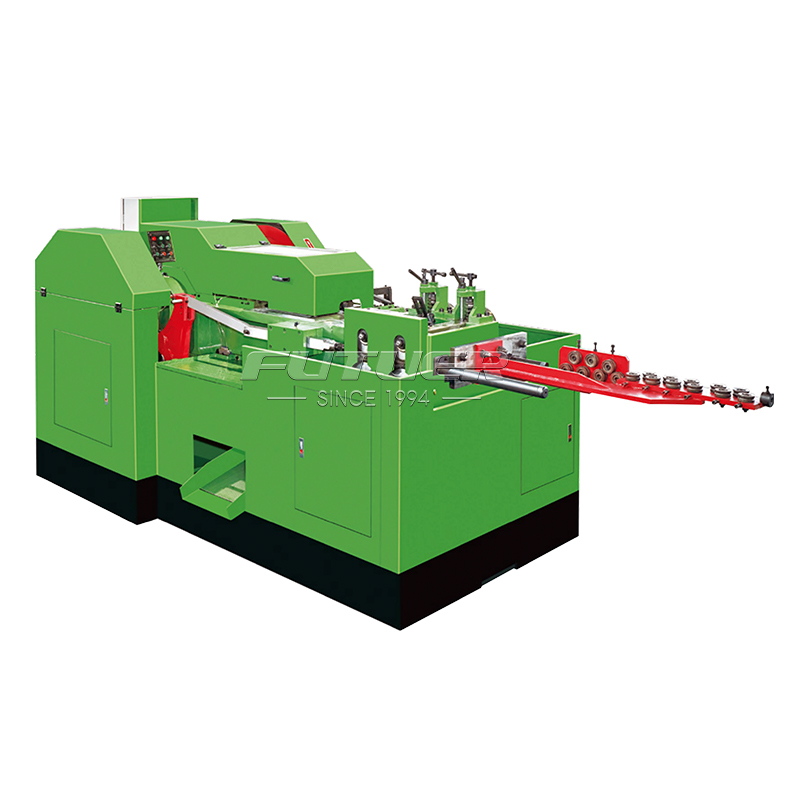

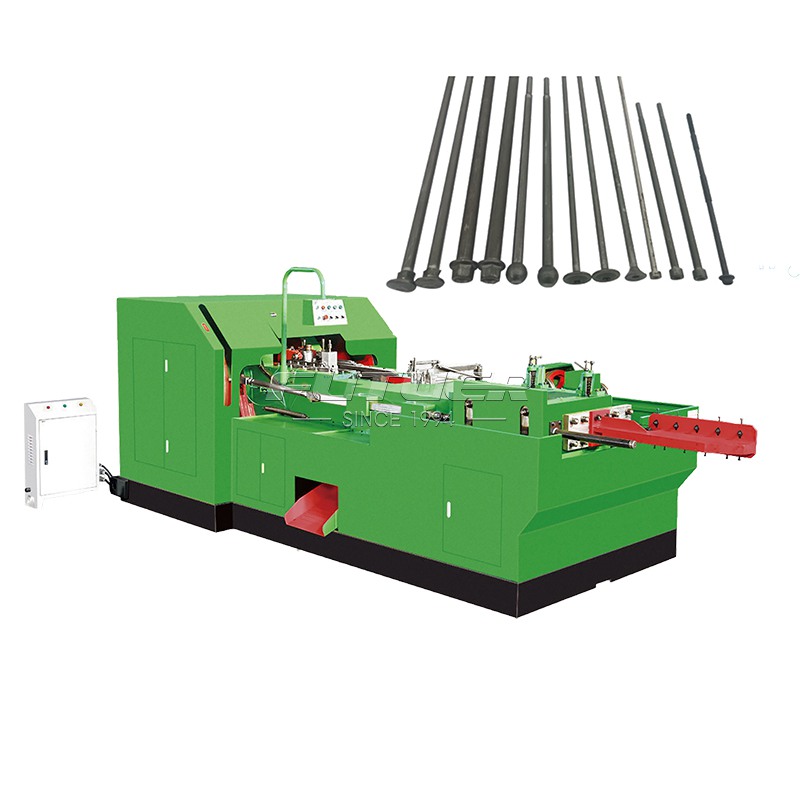

Specializing in the production of various common screw products, it has the advantages of high speed, accurate precision, wide application, low cost and high efficiency.
Model |
Max. Blank Diameter/mm |
Max Blank Length/mm |
Max. Cut-off Length/mm |
Stroke/mm | Capacity/pcs/min | Main Die Diameter/mm |
TheIniti al Punch Die Dia meter/mm |
The Precise Punch Die Diameter/mm |
Cut-off Die Diameter/mm |
Cutter Size/mm | Main Motor Power/kw | Volume (L*W*H)/m |
Weight/kg |
| D8-90 | φ5.0-11 | 90 | 120 | 130 | 80-90 | φ60×120 | φ40×120 | φ40×120 | φ28×45 | 12×42×90 | 6级-7.5KW | 3.40×1.60×1.60 | 4200 |
| D8-120 | φ5.0-11 | 120 | 140 | 156 | 60-80 | φ60×160 | φ40×120 | φ40×120 | φ28×45 | 12×42×90 | 6级7.5KW | 3.45× 1.68×1.60 | 4200 |
| D8-150 | φ5.0-11 | 150 | 180 | 190 | 60-70 | φ60×190 | φ40×120 | φ40×120 | φ28×45 | 12×42×90 | 6级7.5KW | 3.90×1.60×1.80 | 4300 |
| D8-200 | φ5 .0-11 | 200 | 220 | 250 | 40-50 | φ60×240 | φ40×150 | φ40×150 | φ28×60 | 12×42×90 | 8级-7.5KW | 4.15×1.60×1.85 | 5800 |
