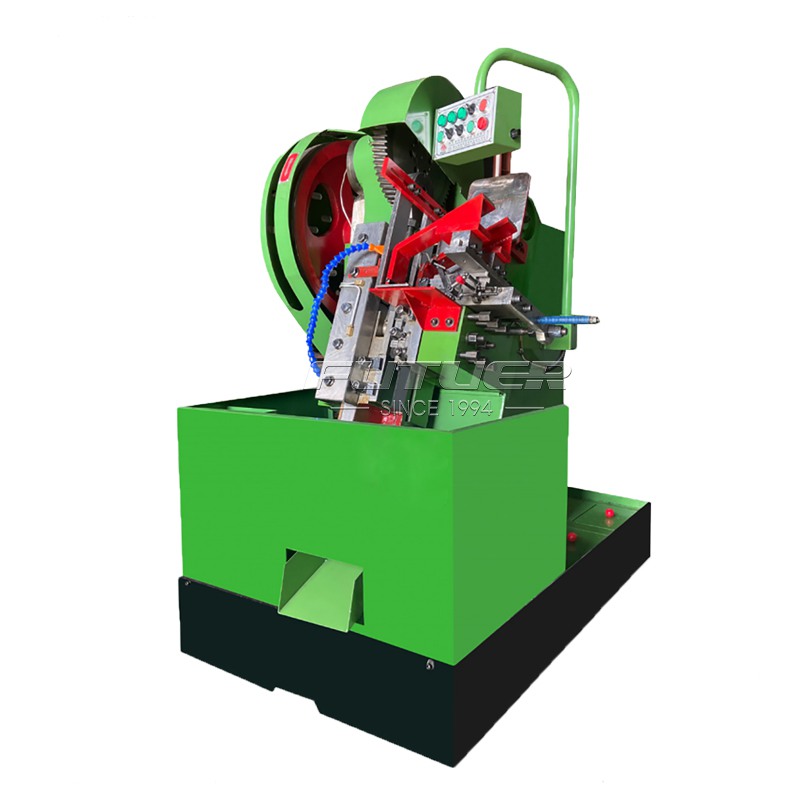

Automatic feeding and cutting type fully automatic thread rolling machine, suitable for thread rolling of various headless screws and long screws.
| Model | Max.B lank Diameter/mm |
Max.Blank Length/mm |
Moving Dies Stationary Length/mm |
Capacity/pcs/min | Main Motor Power/kw |
Volume (L*W*H)/m |
Weight/kg | |
| FR6-80 | 8 | 80 | 125×25×80 | 110×25×80 | 85 | 4级-4KW | 1.40×1.55×1.70 | 1800 |
| FR8-100 | 10 | 100 | 140×30×100 | 125×30×100 | 70 | 6级-5.5KW | 2.20×1.50×1.90 | 2800 |
| FR10-100 | 12 | 100 | 170×30×100 | 150×30×100 | 65 | 6级-7.5KW | 2.60×1.55×2.10 | 3800 |
| FR12-120 | 14 | 120 | 210×40×120 | 190×40×120 | 55 | 6级-11KW | 3.00×1.80×2.35 | 5500 |
