Door Hinge Machine

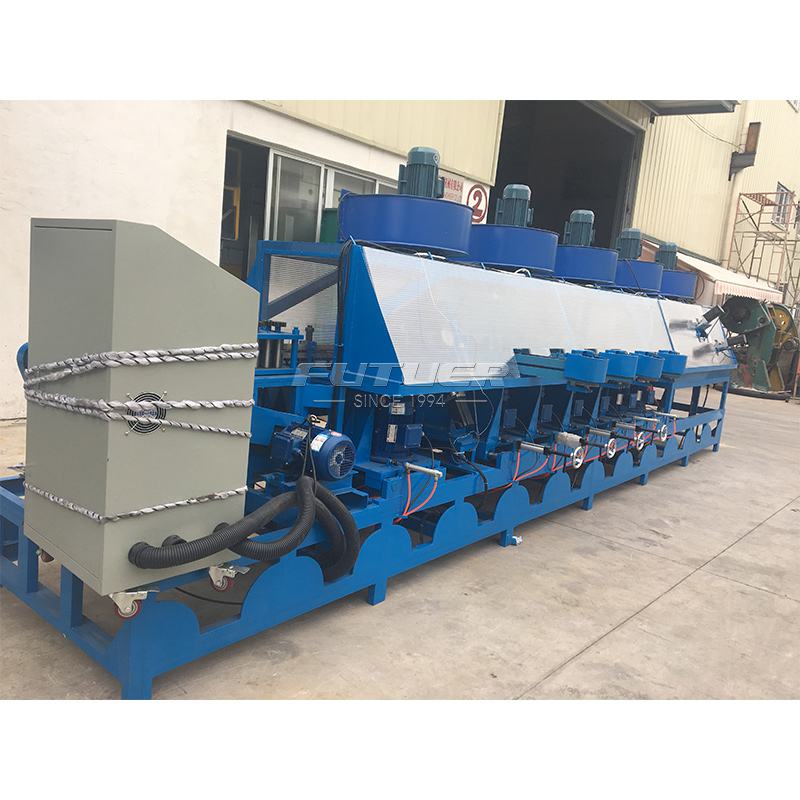

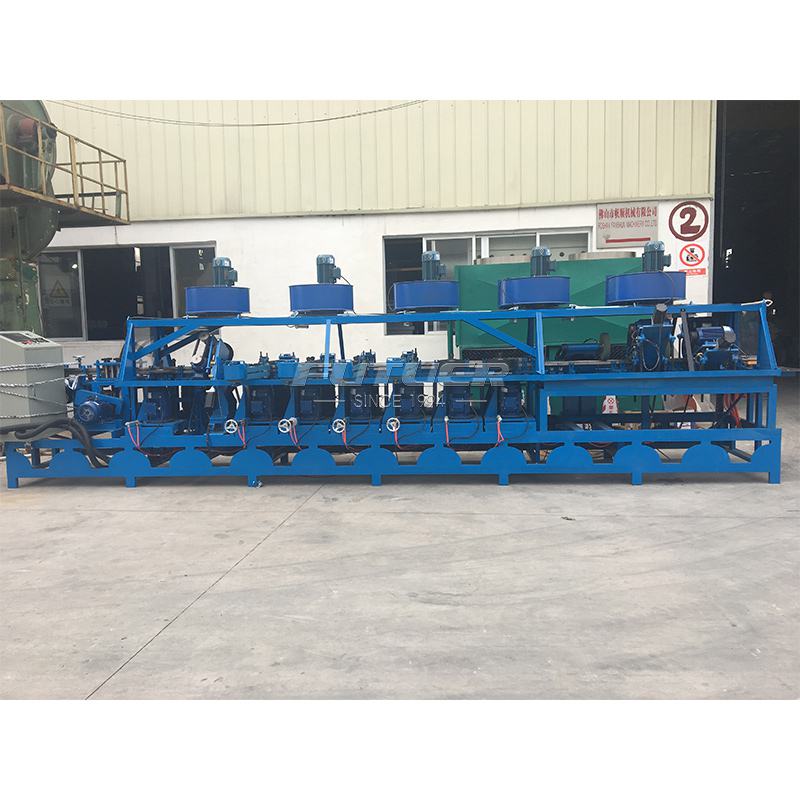

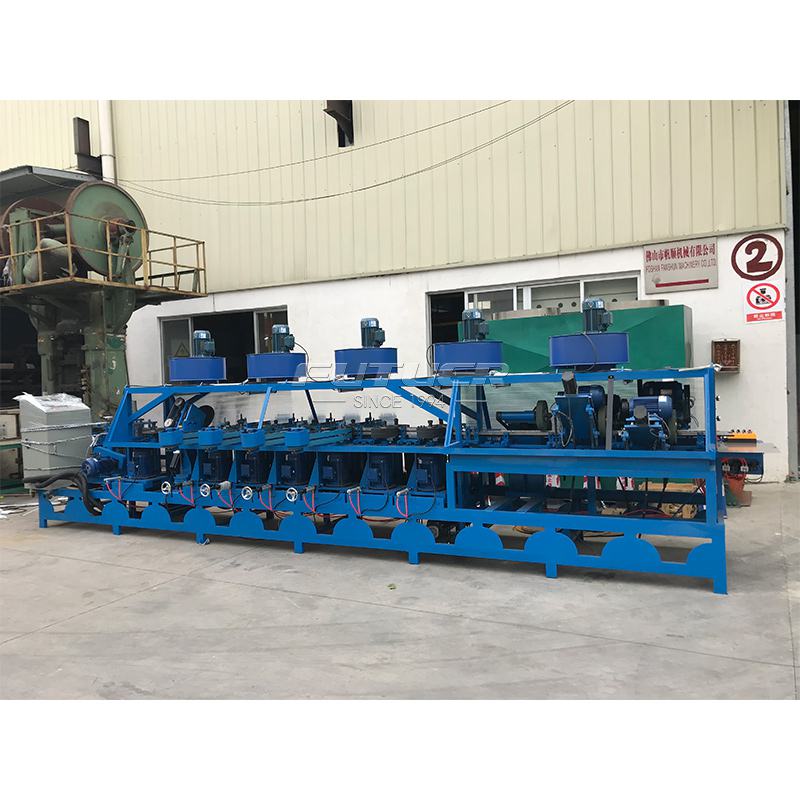

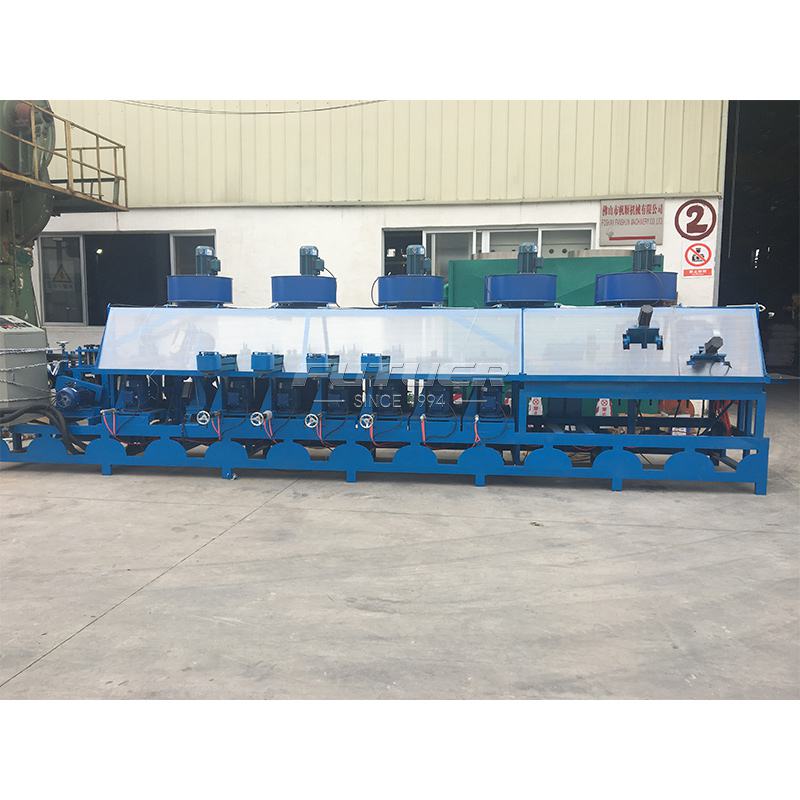

Automatic hinge polishing machine

This machine is special design for metal hinge polishing, easy operation, save manpower, need only two workers, one worker put the hinge to the inlet one by one, hinges transfer to polishing position automatically, then polishing all steps idiomatically, finished products come out from the other outlet side. Production all in one time, working capacity is ten times higher compared with traditional manual polishing machine ,with speed of  1800-2000pcs per hour.

Contact Us







——   EFFECT COMPARISON   ——

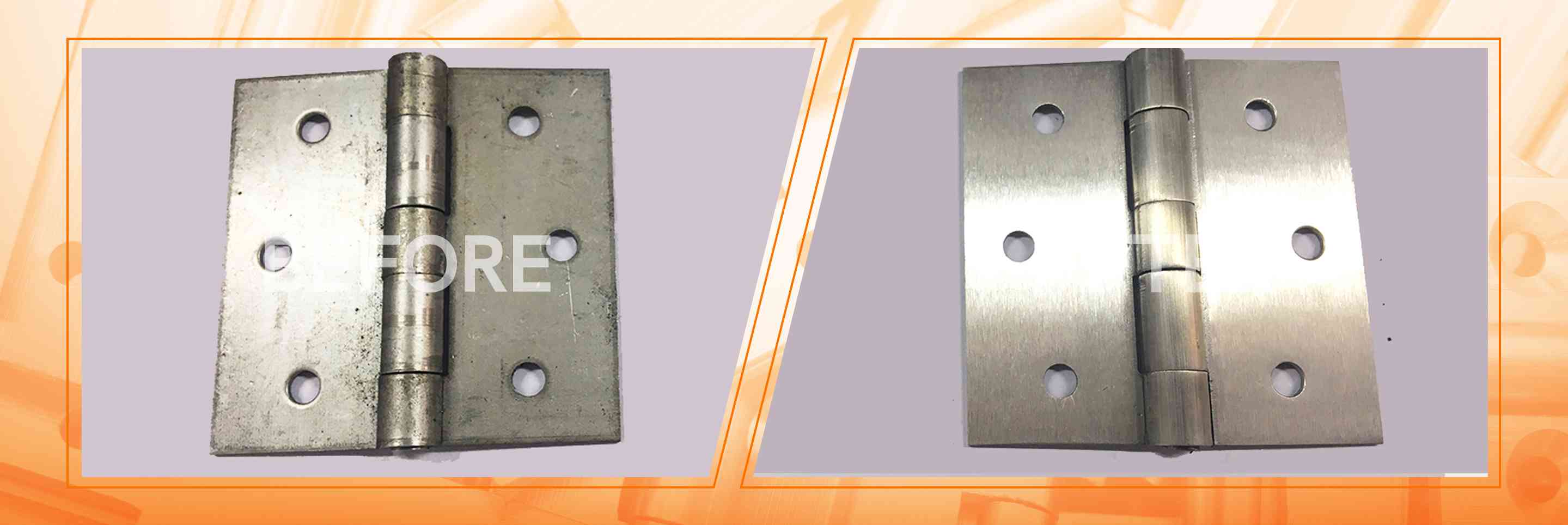

Product comparison before and after



——   PRODUCT SIZE   ——

Automatic Hinge Polishing Machine Performance and Features



Name

High speed automatic hinge drawing machine

Model

YL-PM-045

Power

50KW (25motors)

suitable for Material

Metal SS ,MS,Brass

Voltage

380V

Weight

2600KG

Speed

1800-2000pcs /h

Machine size

7*1.9*2.1m

Rubber wheel

150mm,27hole

Usage

Lock corn and hinge drawing



——   EQUIPMENT DETAILS   ——

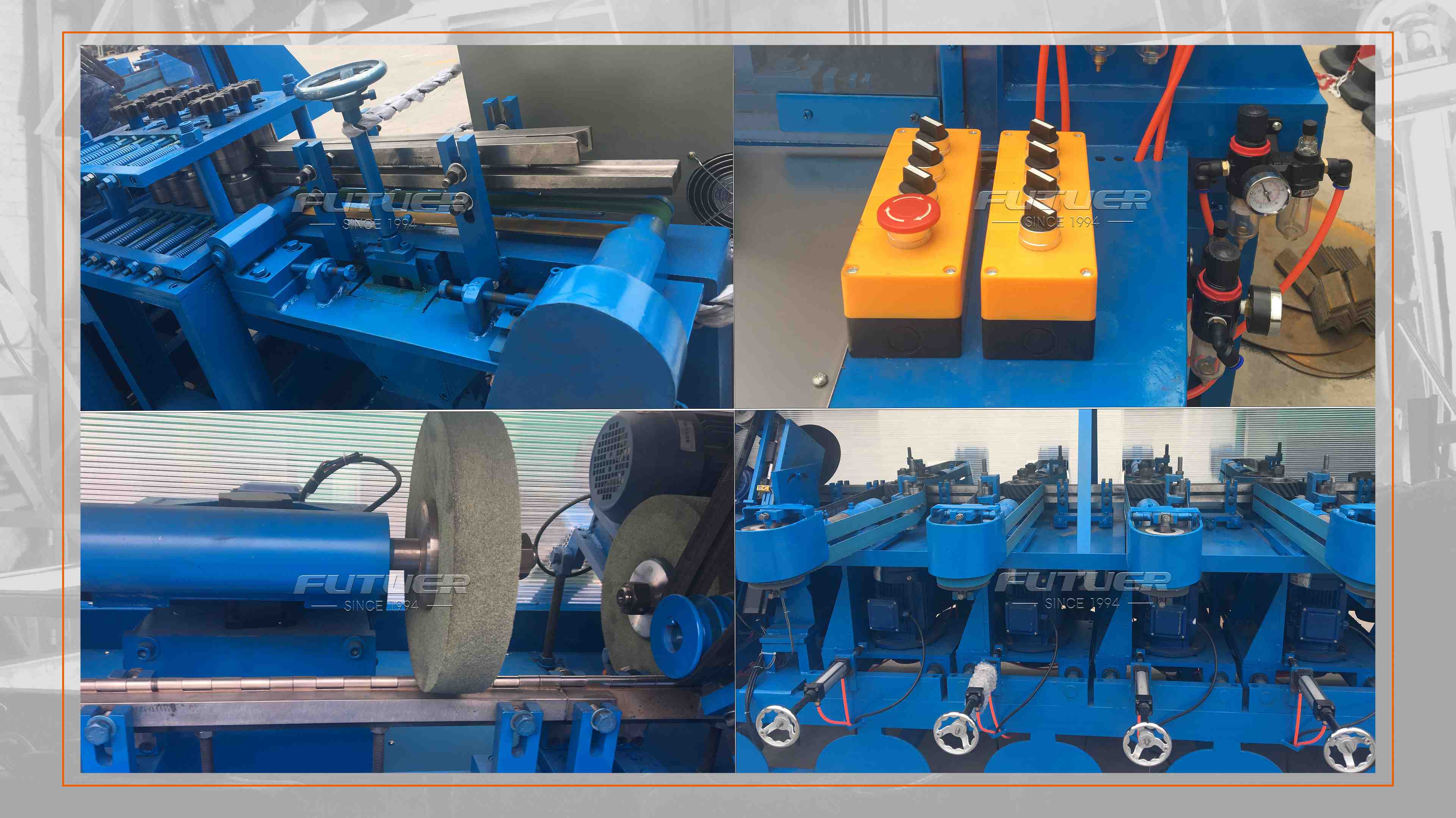

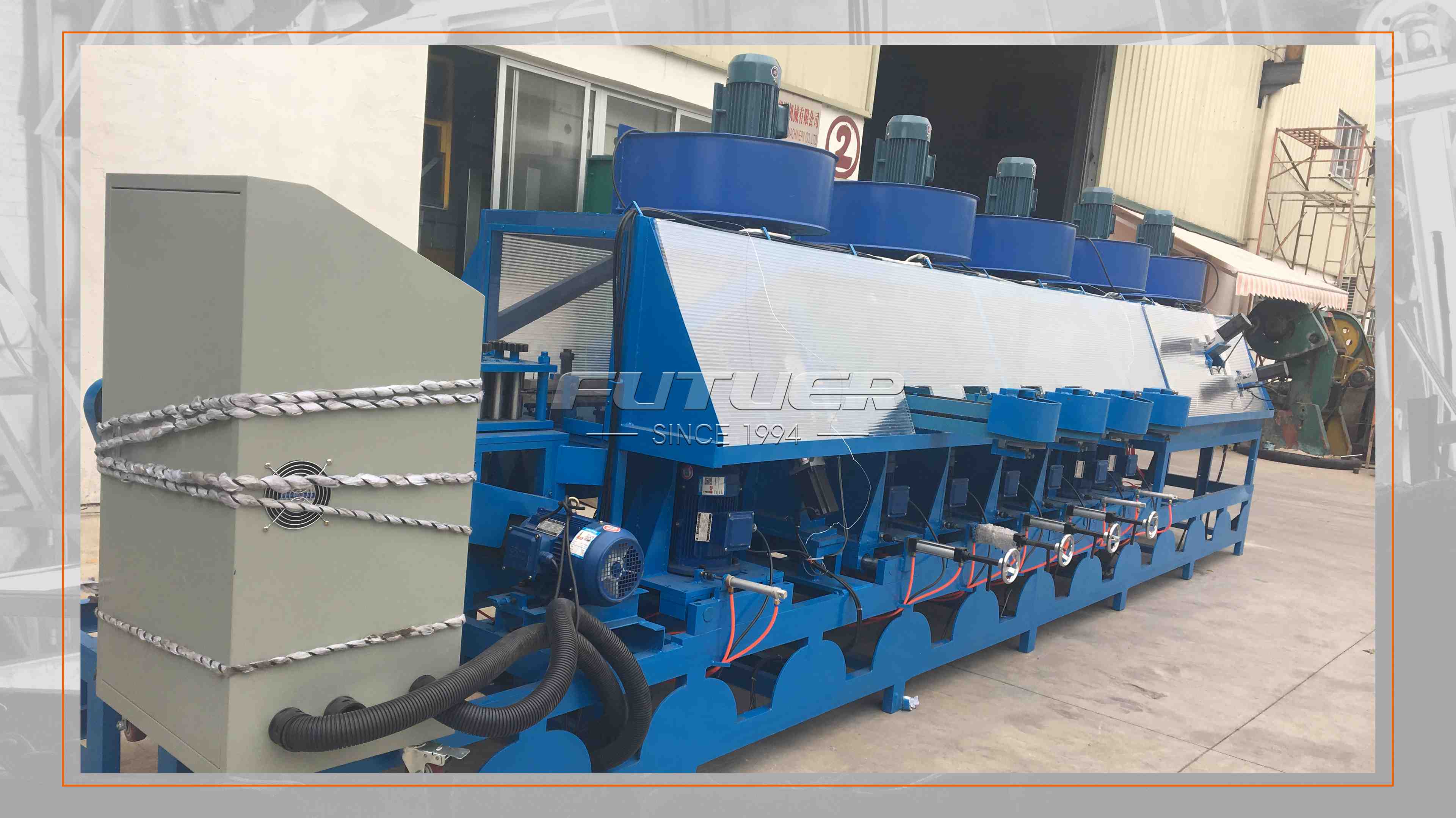

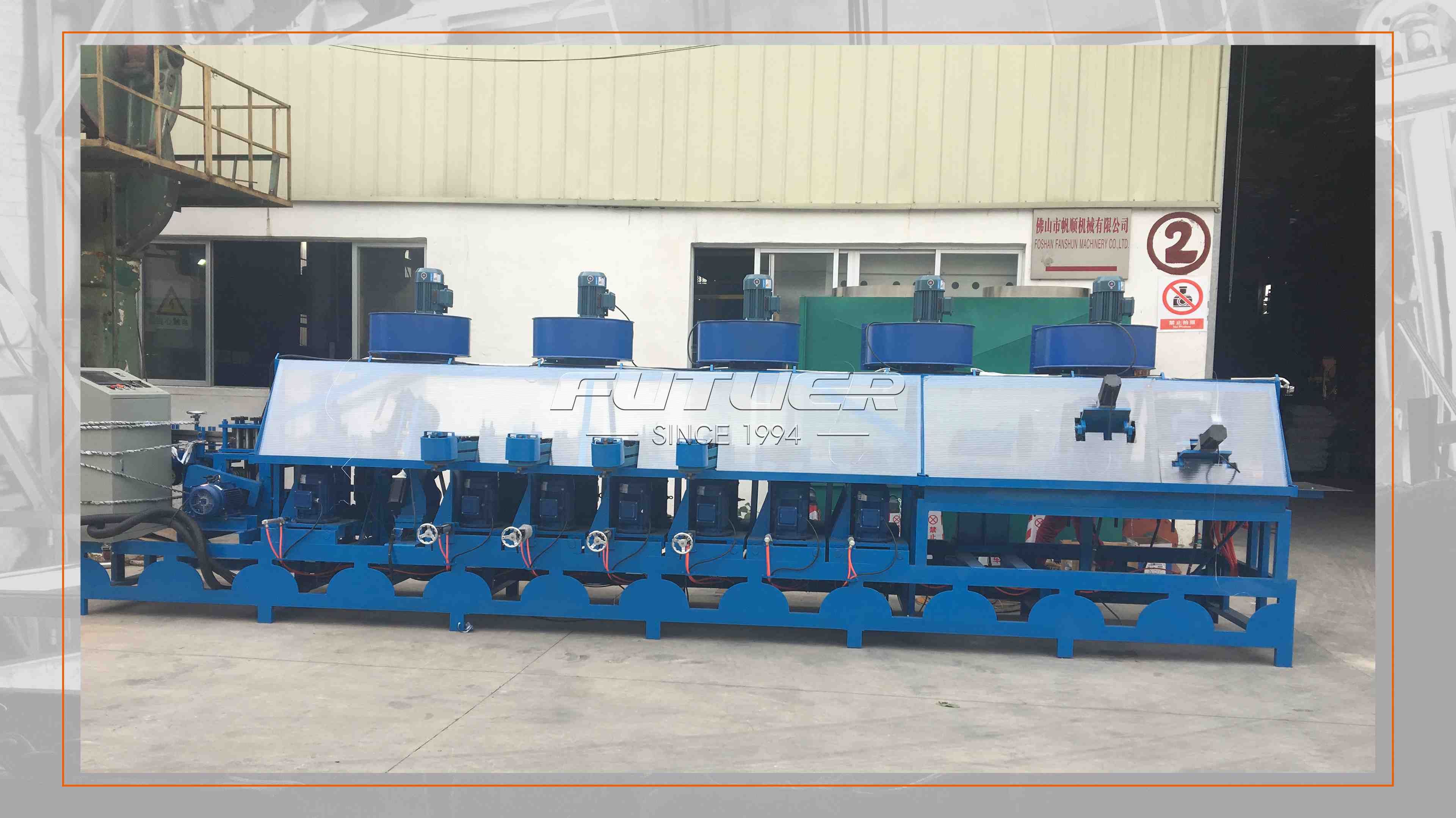

Detailed display of the automatic hinge polishing machine









——   EQUIPMENT SHIPMENT   ——

Ships three or four times a week on average
