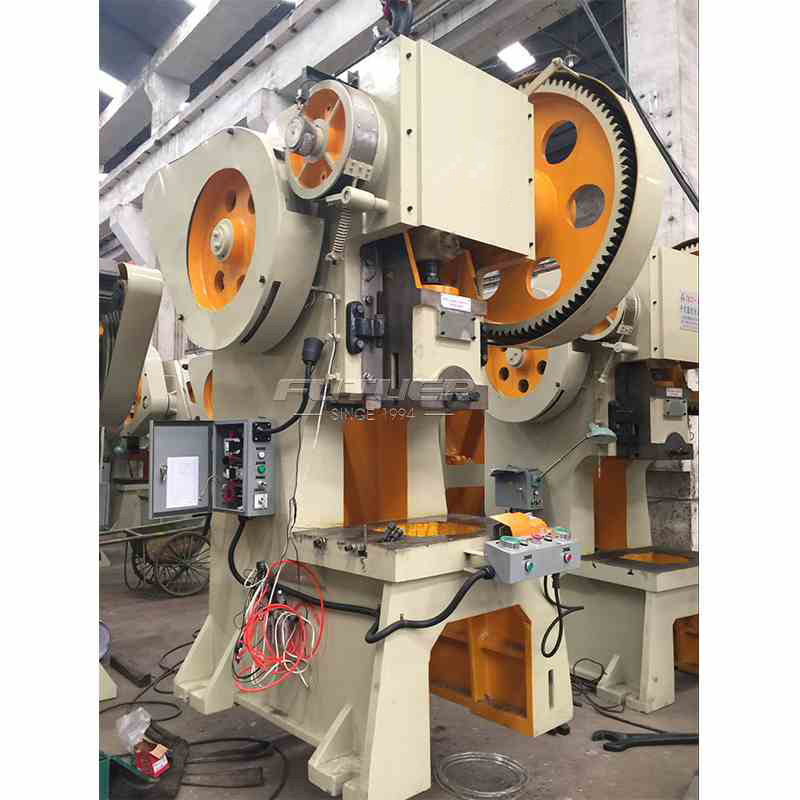

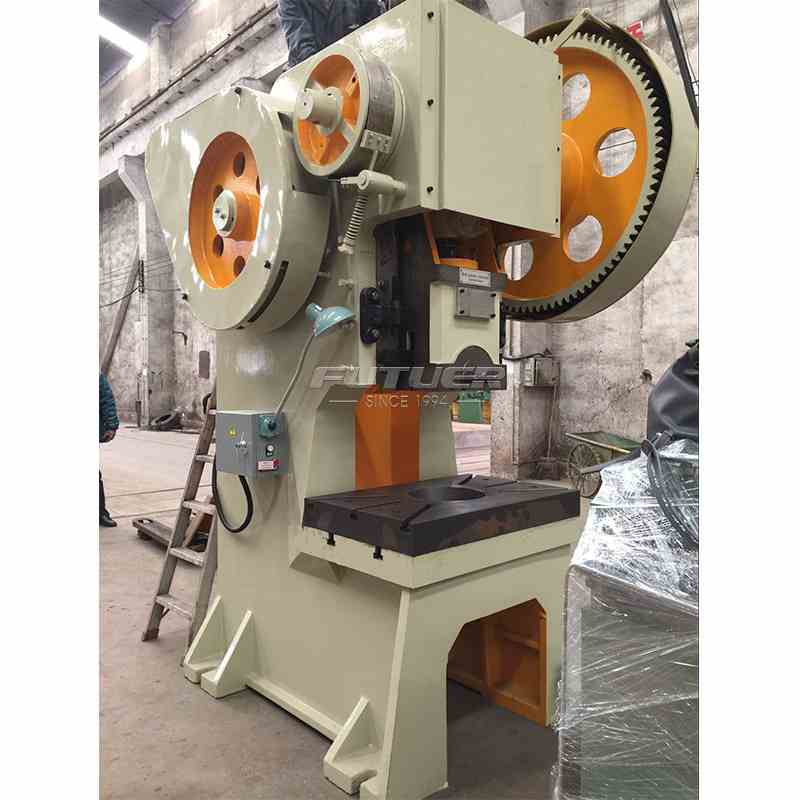

Ordinary Open Fixed Table Press
Ordinary Open Fixed Table Press

Ordinary Open Fixed Table Press

1.Steel welded frame with high intensity
2.Main motor:SIEMENS.
3.Dry pneumatic friction clutch and brake.
4.Gear pairs: oil bath lubrication.
5.Six-face rectangle lengthened guide,JH21-315B/400B:eight-face lengthened guide.
6.Hydraulic overload protector.
7.JH21-16~45:manual die height adjustment,
JH21-16/25/45:scale display,JH21-25B:digital display.
8.Press bigger than JH21-63:electrical die height adjustment with digital display.
9.JH21-45:electrical die height adjustment(optional) with digital display.
10.Lifting balance cylinder (except JH21-16).
11.Imported dual solenoid valve.
12.Electrical grease forced lubrication system.
13.Balance cylinder:manual lubrication.
14.(1) set blowing device.
15.Integrated interface (electrical cam included).
16.PLC of international brand.
17.Button, switch, air circuit breaker of international brand
18.Option:air cushion(air bag or cylinder type), automatic feed shaft device,light curtain, automatic devices.
Contact Us







——   PRODUCT SIZE   ——

Mechanical-CNC-Punching Performance And Features

Model Unit JH21-125 JH21-160B JH21-200B JH21-250 JH21-250B
Nominal Force kn 1250 1600 2000 2500 2500
Nominal Stroke mm 6 6 6 8 8
Slider Stroke mm 160 160 200 200 250
SPN Fixed min-1 50 40 35 30 30
Variable(option) 40-60 35-50 30-40 25-35 25-35
Max Die Height mm 350 350 450 430 500
Die Height Adjustment mm 80 110 110 120 120
Between Slide Center And Frame mm 350 380 390 420 420
Bolster(FBxLBR) mm
680*1150
740*1300
760*1400
800*1400
800*1400
Bolster Opening (up dia *depth* lowdia) mm
φ260*50
*φ220
φ300*50
*φ260
φ300*50
*φ260
φ320*50
*φ280
φ320*50
*φ280
Bolster Thickness mm 140 150 160 170 170
Machine Table Hole Size(dia/front and back*left and right) mm
420*540
480*600
480*600*370
*570 ( Air Cushion)
370*570
370*570
Side Area (FBxLR) mm
540*680
580*770
600*800
650*850
650*850
Shank Hole (Dia Depth) mm
φ60*80
φ65*85
φ65*90
φ70*90
φ70*90
Between Columns mm 760 850 870 960 960
Main Motor Power kw 11 15 18.5 22 22
Outline Dimension(FBxLRxH) mm
1850*1490
*3060
2230*1630
*3210
2480*1645
*3520
2800*1730
*3550
2800*1730
*4115
Net Weight kg
9800
14500
17400
22100
23300





——   EQUIPMENT DETAILS   ——

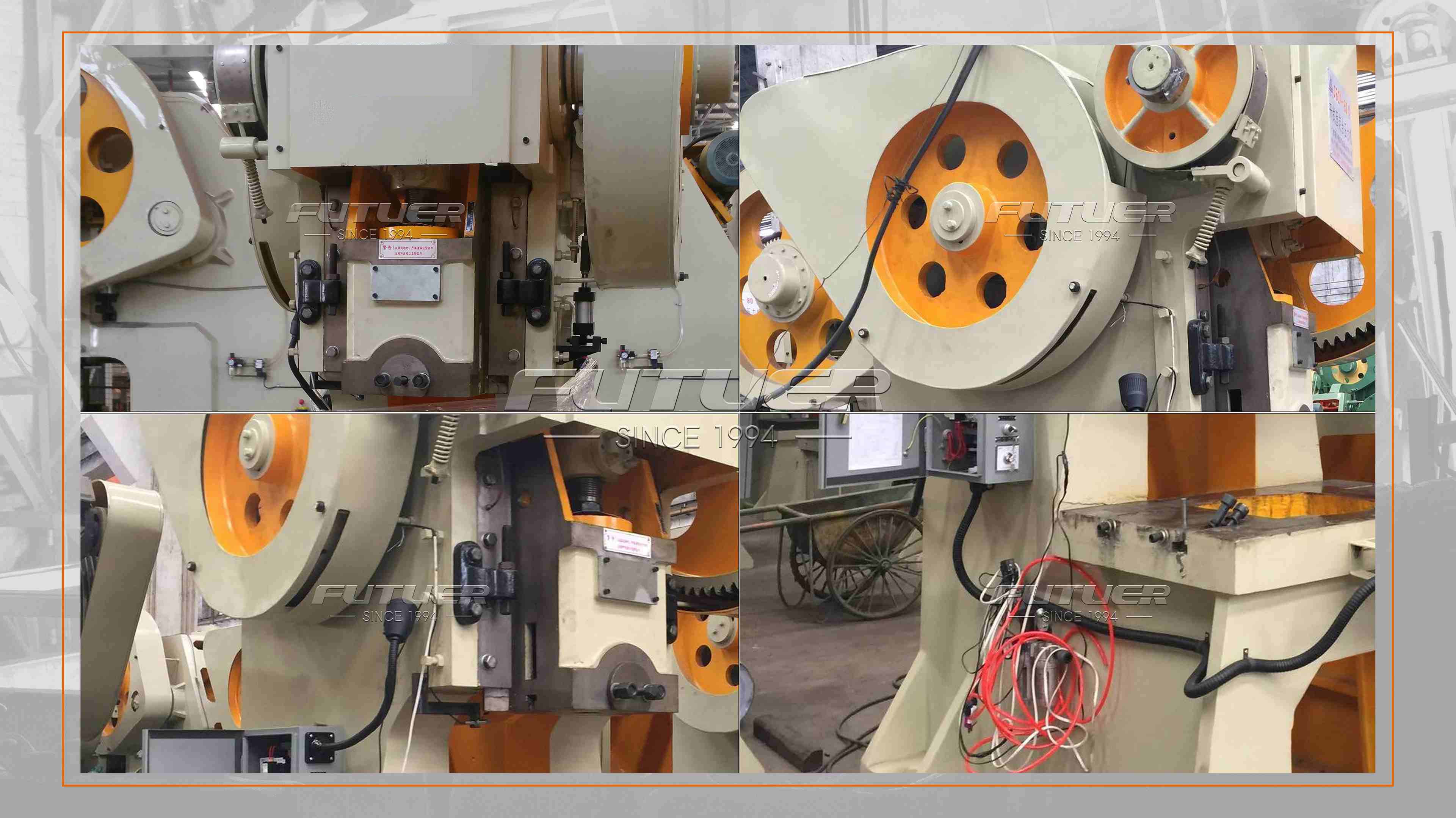

Detailed display of the mechanical-cnc-punching

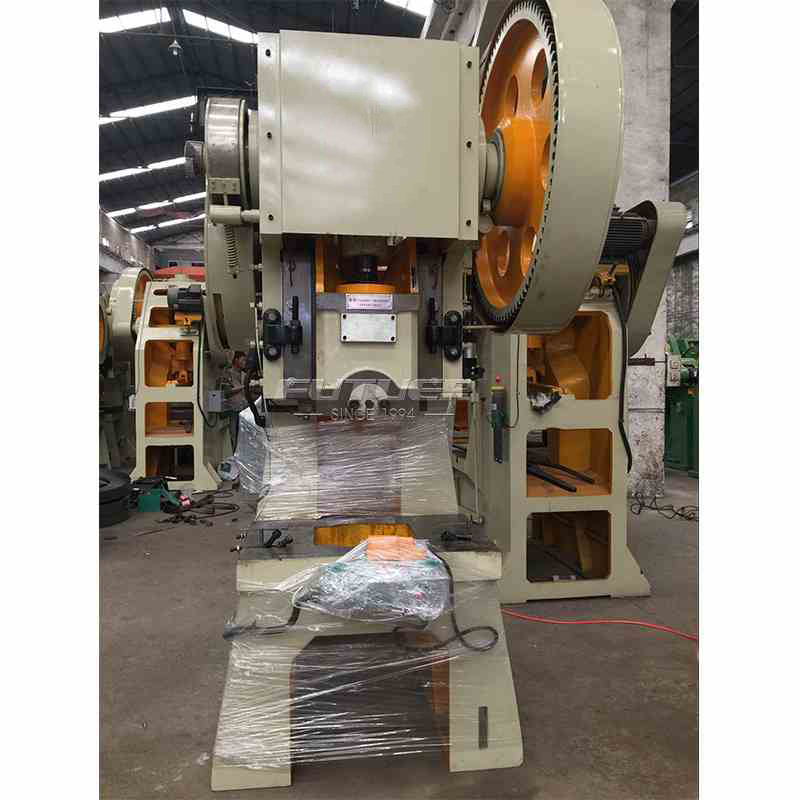

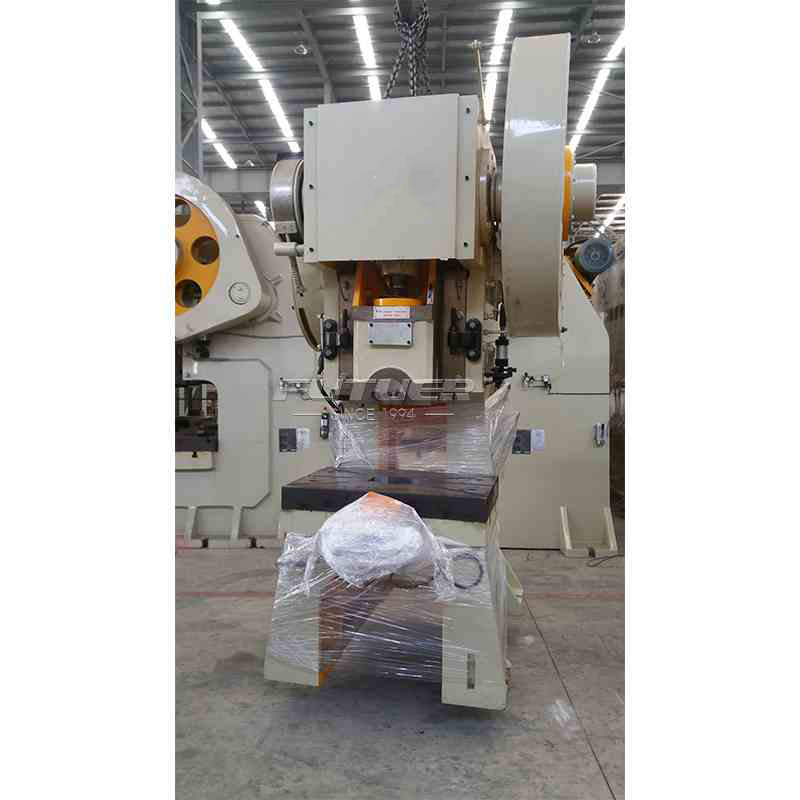

——   EQUIPMENT SHIPMENT   ——

Ships three or four times a week on average
