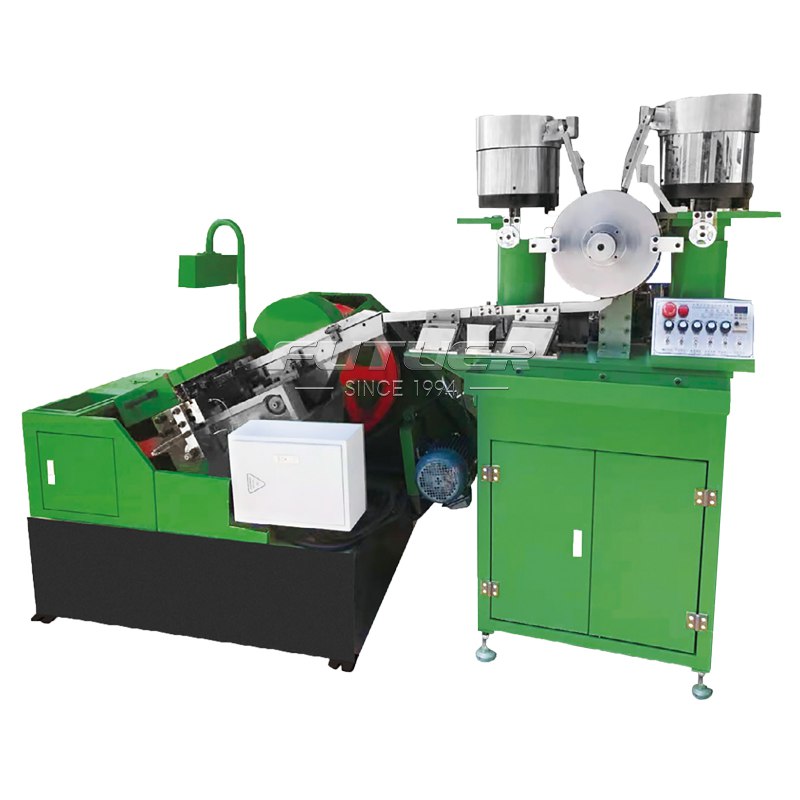

1. The fully automatic washer assembly machine has stable performance, excellent design, saves labor and improves efficiency. It can produce washer assembly from 1.7mm to 10mm.
2. This product is free of warranty for one year and has lifetime maintenance.
| Model | Max.Blank Diameter/mm | Max.Blank Length/mm | Strike | Capacity/pcs/min | RPM(PCS/min) | Cut-off Die diameter(mm) | Punch Die(1st)(mm) | Punch Die(2st)(mm) | Cutter Size/mm | Main Motor Power/kw | Volume (L*W*H)/m)Weight/kg | Weight/kg |
| DL4-20A | φ5.0 | 20 | 68 | 80-120 | φ32×105 | φ15×30 | φ25×65 | φ25×65 | 9×30×70 | 6级-1.5kw | 2.10×1.02×1.05 | 1300 |
| DL5-30A | φ8.0 | 30 | 102 | 80-100 |
φ34.5×130 |
φ19×35 | φ31×75 | φ31×75 | 9×30×72 | 6级-2.2kw | 2.50×1.13×1.18 | 1700 |
| DL5-40A | φ8.0 | 40 | 102 | 80-100 | φ34.5×145 | φ19×35 | φ31×75 | φ31×75 | 9×30×72 | 6级-2.2kw | 2.50×1.13×1.18 | 1750 |
