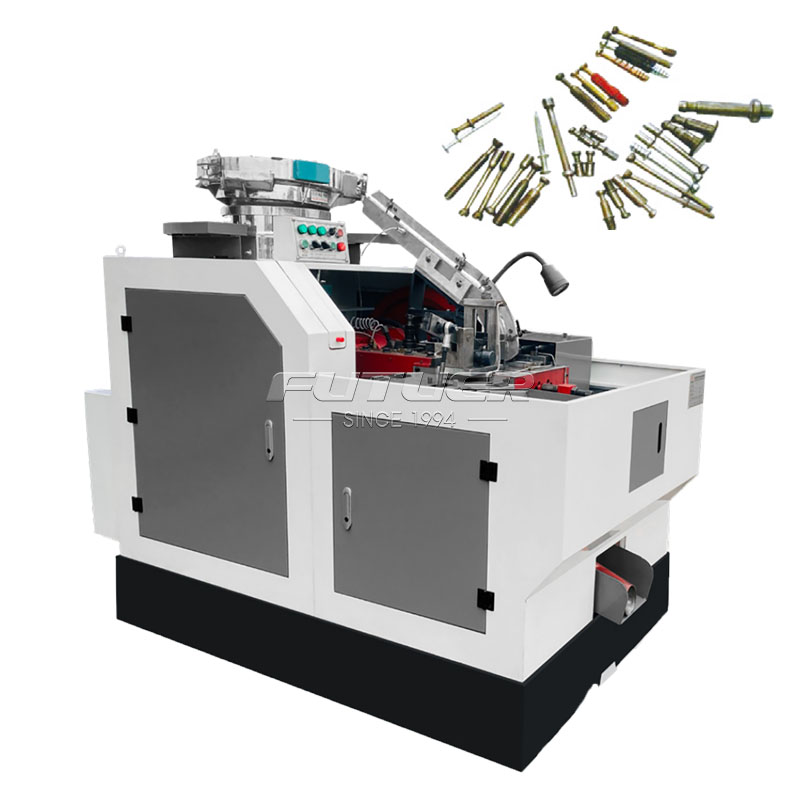

1. The opening and closing mold heading machine is a heading machine for special-shaped screws. It can produce multi-step, double-cap, double-head and other hardware products.
2. Reduce the customer's production costs, allowing hardware and axle parts that have been produced manually or semi-automatically to be produced through mechanical automation, greatly improving production efficiency.
| Model | Max.Blank Diameter/mm |
Max Blank Length/mm | Capacity /pcs/min |
Main Die Diameter/mm |
The Initial Punch Die Diameter/mm |
The Precise Punch Die Diameter/mm |
Main Motor Power/kw |
Volume (L*W*H)/m |
Weight/kg | ||
| DH5-6-70 | φ6.0 | 70 | 80-100 | 40×40×50 | φ35×80 | φ35×80 | 6级-3.0KW | 2.05×1.20×1.65 | 2100 | ||
| DH6-8-120 | φ8.0 | 120 | 60-70 | 50×50×75 | φ35×120 | φ35×120 | 8级-4.0KW | 2.60×1.40×1.70 | 3100 | ||
| DH6(infinitely long) | φ8.0 | infinitely long | 35-50 | 50×50×100 | φ35×120 | φ35×120 | 8级-4.0KW | 2.97×1.46×1.55 | 3900 | ||
| DH8-10-200 | φ11.0 | 200 | 45-55 | 55×55×150 | φ45×120 | φ45×120 | 8级-7.5KW | 3.73×1.69×2.02 | 5800 | ||
| DH8(infinitely long) | φ11.0 | infinitely long | 30-40 | 55×55×200 | φ45×120 | φ45×120 | 8级-7.5KW | 3.30×1.60×1.60 | 6000 | ||
| DH10-12-250 | φ13.0 | 250 | 30-40 | 70×70×200 | φ60×180 | φ55×180 | 8级-11KW | 3.60×1.80×1.70 | 8500 | ||
