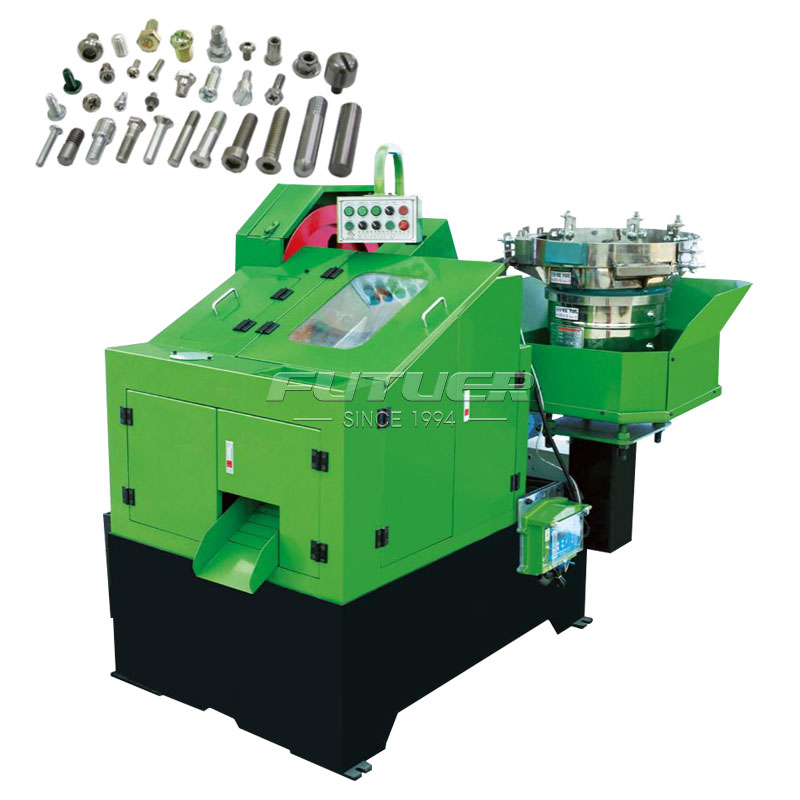

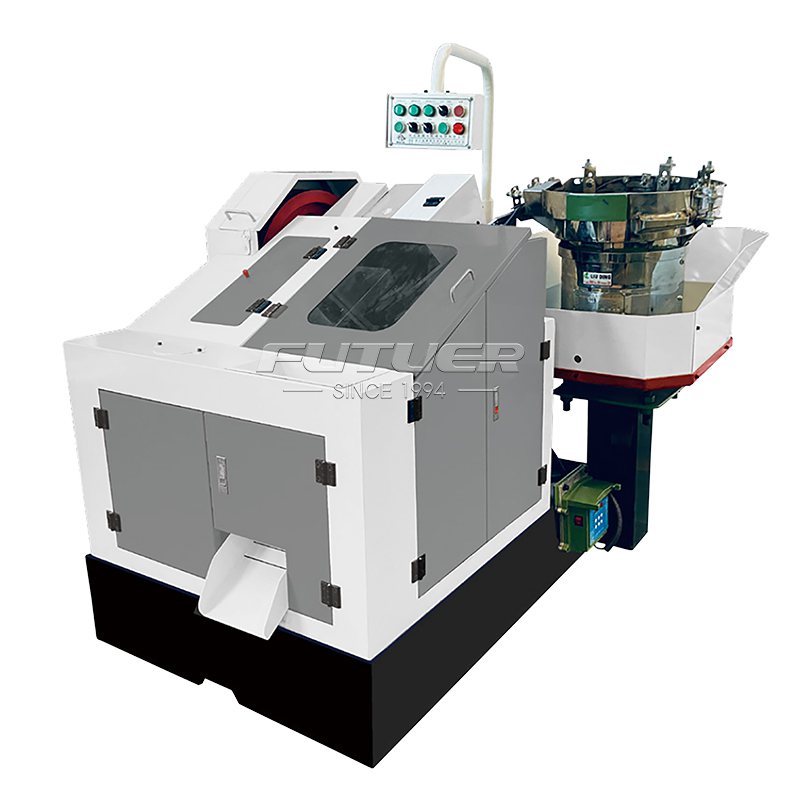

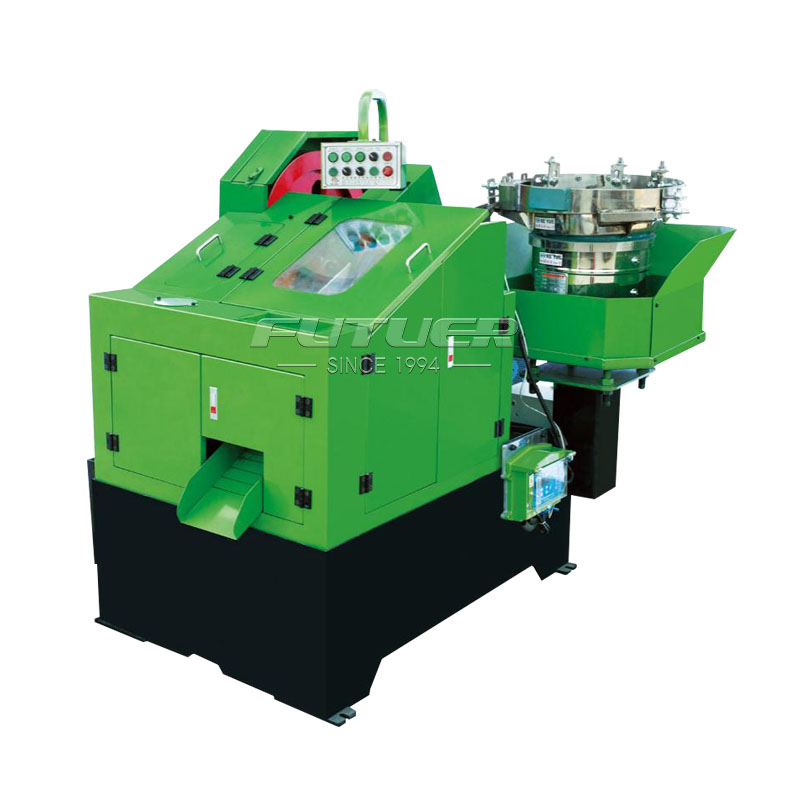

1. The vibrating plate thread rolling machine is driven by electricity to arrange and feed the screws or other hardware products in the vibrating plate in an orderly manner.
2. It is suitable for thread forming of non-standard parts and various common screws.
Mechanical parameters
| Model | Max,Blank Diameter/mm |
Max.Blank Length/mm |
Moving Dies StationaryLength/mm |
Capacity /pcs/min |
Main Motor Power/kw |
Volume (L"W'H)/m |
Weight/kg | |
| CR5-55Z | φ6 | 55 | 105×25×55 | 90×25×55 | 150-180 | 4级-4KW | 1.80×1.42×1.60 | 1150 |
| CR6-70Z | φ8 | 70 | 125×25×70 | 110×25×70 | 140-160 | 4级-5.5KW | 2.00×1.65×1.65 | 1400 |
| CR8-80Z | φ8 | 80 | 127×30×80 | 108×30×80 | 120-170 | 4级-5.5KW | 2.60×1.68×2.10 | 2250 |
| CR10-100Z | φ10 | 100 | 170×30×100 | 150×30×100 | 90-120 | 6级-11KW | 2.62×1.72×2.20 | 2800 |
| CR12-120Z | φ12 | 120 | 210×40×120 | 190×40×120 | 80-100 | 6级-18.5KW | 2.67×1.93×1.60 | 4200 |
| CR12-200Z | φ12 | 200 | 210×40×200 | 190×40×200 | 80-100 | 6级-18.5KW | 2.90×1.95×2.50 | 4500 |
| CR16-1502 | φ16 | 150 | 260×40×150 | 230×40×150 | 70 | 6级-22KW | 3.50×1.95×2.20 | 6700 |
