1.Steel welded frame with high intensity
2.Main motor:SIEMENS.
3.Dry pneumatic friction clutch and brake.
4.Gear pairs: oil bath lubrication.
5.Six-face rectangle lengthened guide,JH21-315B/400B:eight-face lengthened guide.
6.Hydraulic overload protector.
7.JH21-16~45:manual die height adjustment,
JH21-16/25/45:scale display,JH21-25B:digital display.
8.Press bigger than JH21-63:electrical die height adjustment with digital display.
9.JH21-45:electrical die height adjustment(optional) with digital display.
10.Lifting balance cylinder (except JH21-16).
11.Imported dual solenoid valve.
12.Electrical grease forced lubrication system.
13.Balance cylinder:manual lubrication.
14.set blowing device.
15.Integrated interface (electrical cam included).
16.PLC of international brand.
17.Button, switch, air circuit breaker of international brand
18.Option:air cushion (air bag or cylinder type), automatic feed shaft device,light curtain, automatic devices.
—— PRODUCT SIZE ——
Press-Machine Performance and Features
| Model | Unit | JH21-125 | JH21-160B | JH21-200B | JH21-250 | JH21-250B | |
| Nominal Force | kn | 1250 | 1600 | 2000 | 2500 | 2500 | |
| Nominal Stroke | mm | 6 | 6 | 6 | 8 | 8 | |
| Slider Stroke | mm | 160 | 160 | 200 | 200 | 250 | |
| SPN | Fixed | min-1 | 50 | 40 | 35 | 30 | 30 |
| Variable(option) | 40-60 | 35-50 | 30-40 | 25-35 | 25-35 | ||
| Max Die Height | mm | 350 | 350 | 450 | 430 | 500 | |
| Die Height Adjustment | mm | 80 | 110 | 110 | 120 | 120 | |
| Between Slide Center And Frame | mm | 350 | 380 | 390 | 420 | 420 | |
| Bolster(FBxLBR) | mm |
680*1150 |
740*1300 |
760*1400 |
800*1400 |
800*1400 |
|
| Bolster Opening (up dia *depth* lowdia) | mm |
φ260*50 *φ220 |
φ300*50 *φ260 |
φ300*50 *φ260 |
φ320*50 *φ280 |
φ320*50 *φ280 |
|
| Bolster Thickness | mm | 140 | 150 | 160 | 170 | 170 | |
| Machine Table Hole Size(dia/front and back*left and right) | mm |
420*540 |
480*600 |
480*600*370 *570 ( Air Cushion) |
370*570 |
370*570 |
|
| Side Area (FBxLR) | mm |
540*680 |
580*770 |
600*800 |
650*850 |
650*850 |
|
| Shank Hole (Dia Depth) | mm |
φ60*80 |
φ65*85 |
φ65*90 |
φ70*90 |
φ70*90 |
|
| Between Columns | mm | 760 | 850 | 870 | 960 | 960 | |
| Main Motor Power | kw | 11 | 15 | 18.5 | 22 | 22 | |
| Outline Dimension(FBxLRxH) | mm |
1850*1490 *3060 |
2230*1630 *3210 |
2480*1645 *3520 |
2800*1730 *3550 |
2800*1730 *4115 |
|
| Net Weight | kg |
9800 |
14500 |
17400 |
22100 |
23300 |
|
—— EQUIPMENT DETAILS ——

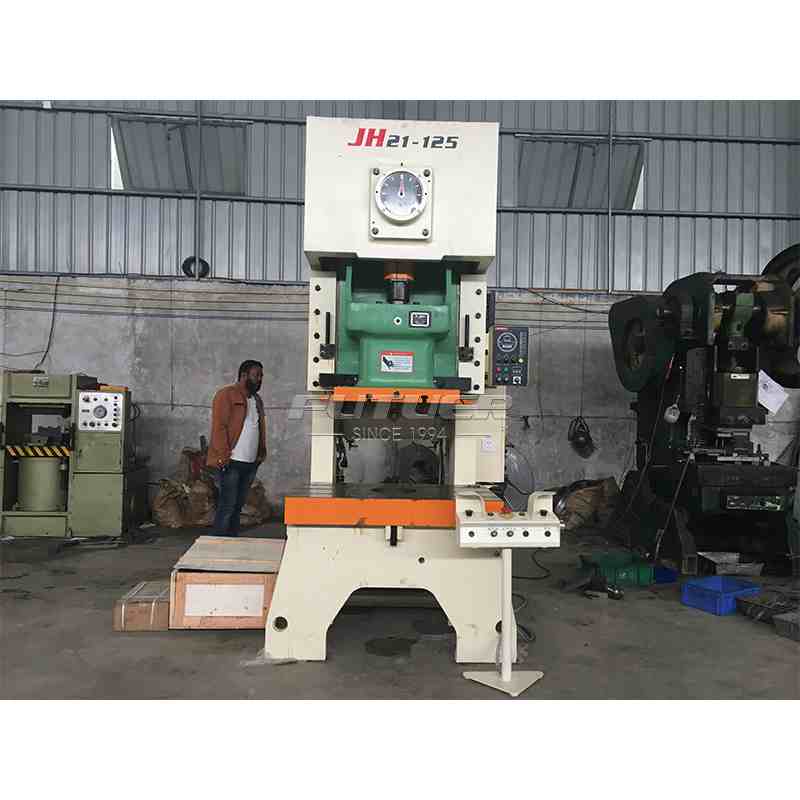

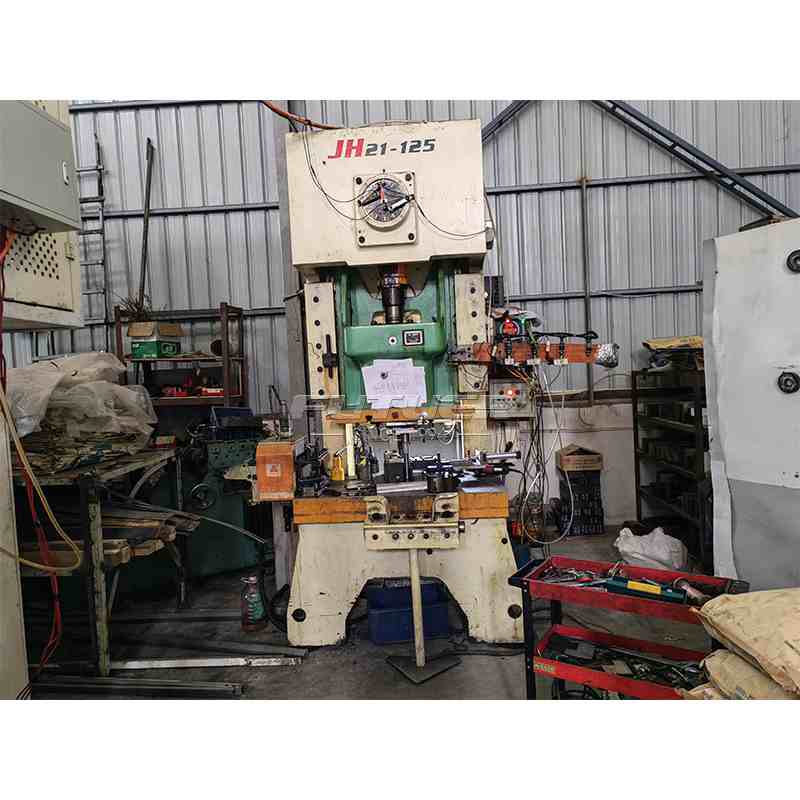

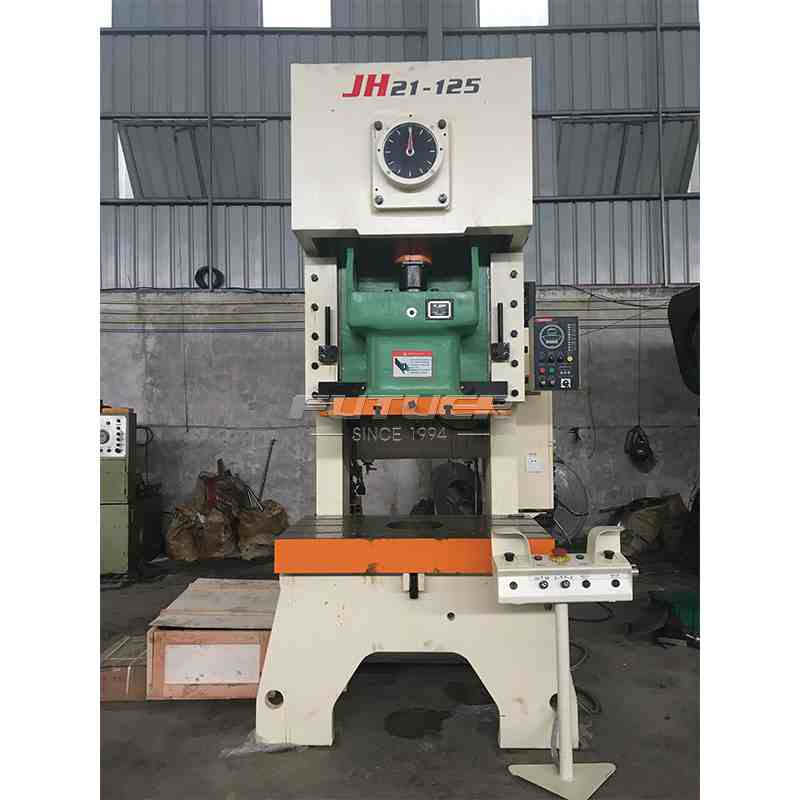

Detailed display of the press-machine
—— EQUIPMENT SHIPMENT ——
Ships three or four times a week on average
