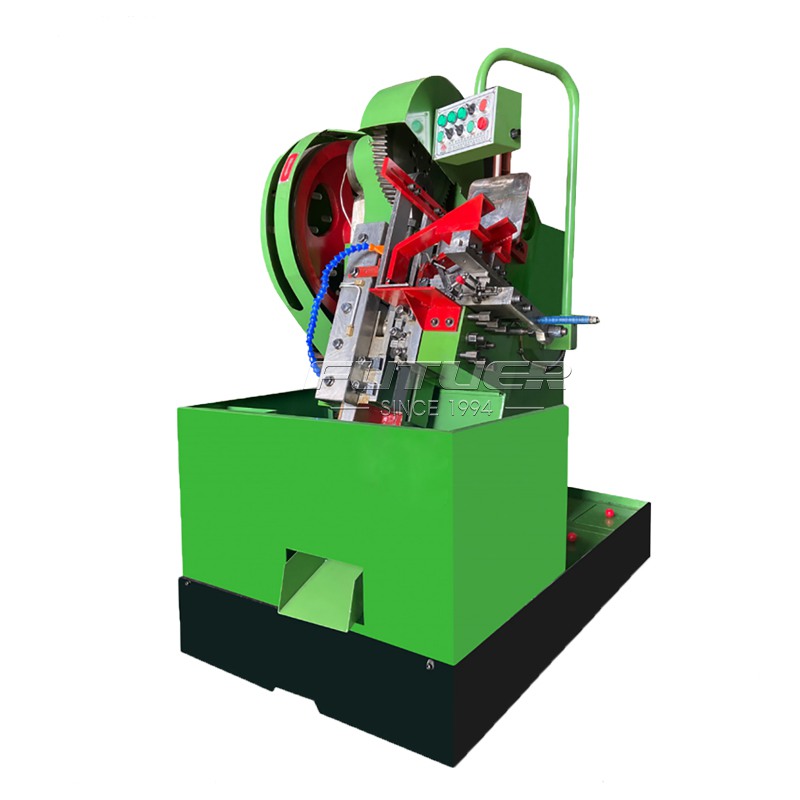

The vertical thread rolling machine is a non-standard semi-automatic thread rolling machine, suitable for thread rolling of various headless screws and long screw threads.
| Model | Max.Blank Diameter/mm |
Max.B lank Length/mm |
Moving Dies Stationary Length/mm |
Capacity/pcs/min | Main Motor Power/kw | Volume (L*W*H)/m |
Weight/kg | |
| R4-40 | M4 | 40 | 89×25×40 | 76×25×40 | 80-120 | 6级-2.2KW | 1.30×1.00×1.40 | 800 |
| R5-65 | M5 | 65 | 105×25×65 | 90×25×65 | 80-100 | 4级-3KW | 1.30×1.00×1.40 | 1000 |
| R6-80 | M6 | 80 | 125×25×80 | 110×25×80 | 70-90 | 4级-4KW | 1.50×1.00×1.55 | 1100 |
| R6-120 | M6 | 120 | 125×25×120 | 110×25× 120 | 70-80 | 4级-4KW | 1.50×1.00×1.55 | 1200 |
| R8-80 | M8 | 80 | 140×30×80 | 125×30×80 | 60-70 | 6级-5.5KW | 1.50×1.00×1.70 | 1500 |
| R8-130 | M8 | 130 | 140×30×130 | 125×30×130 | 60-70 | 6级-7.5KW | 1.50×1.00×1.70 | 1650 |
| R10-100 | M10 | 100 | 170×30×100 | 150×30×100 | 55-60 | 6级-7.5KW | 2.15×1.25×1.70 | 1950 |
| R12-120 | M12 | 120 | 210×40×120 | 190×40×120 | 50-55 | 6级-11KW | 2.25×1.50×2.29 | 2800 |
